Infineon Technologies F4100R17N3P4B58BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
F4100R17N3P4B58BPSA1
Package
Module
Packaging
Tray
Description

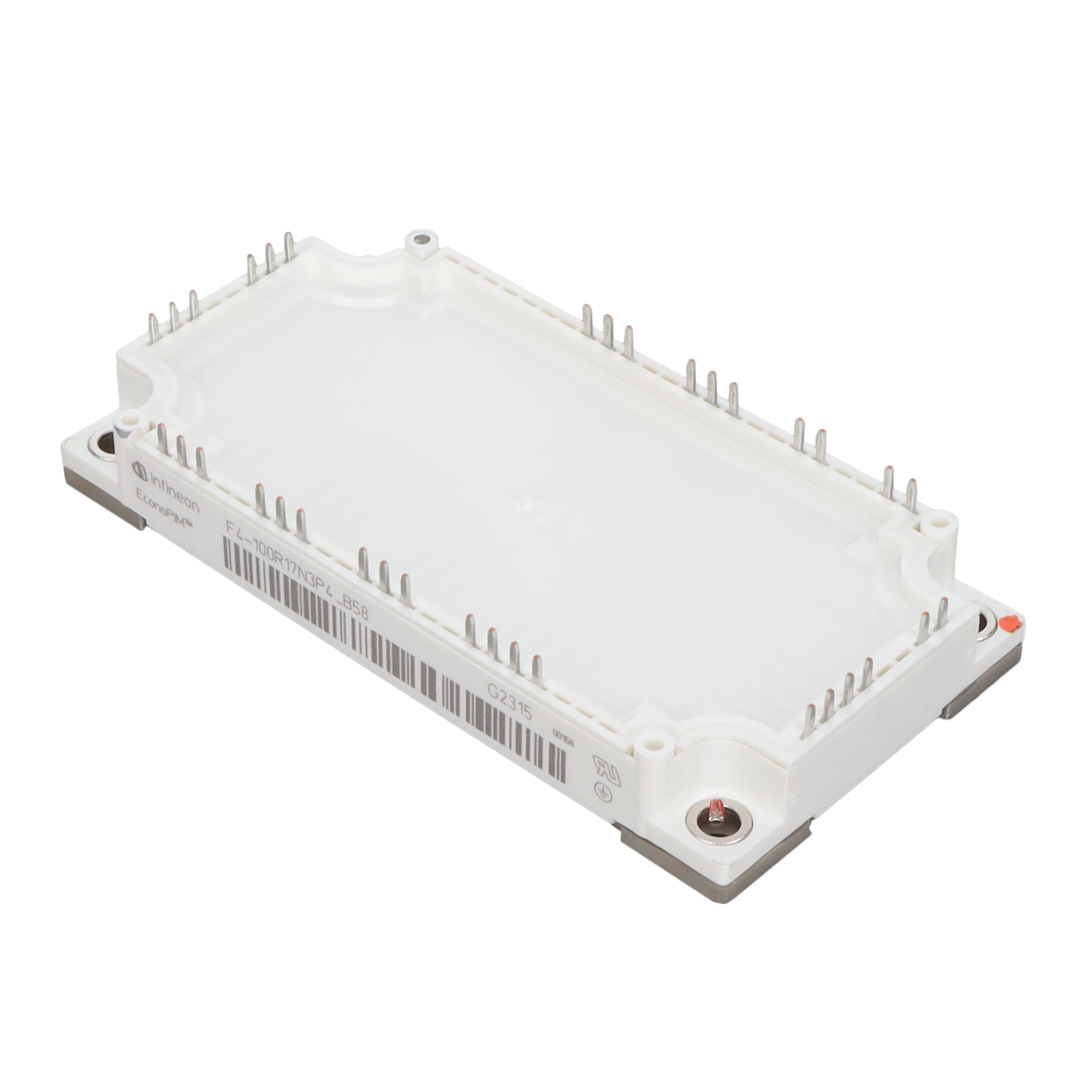

IGBT MOD 1700V 100A AG-ECONO3B
Detailed Description
IGBT Module Trench Field Stop Full Bridge Inverter 1700 V 100 A Chassis Mount AG-ECONO3B
DataSheet
Input
Three Phase Bridge Rectifier
Series
EconoPACK™3
IGBT Type
Trench Field Stop
Packaging
Tray
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
Full Bridge Inverter
Mounting Type
Chassis Mount
NTC Thermistor
Yes
Package / Case
Module
Base Product Number
F4100R
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
AG-ECONO3B
Vce(on) (Max) @ Vge, Ic
2.25V @ 15V, 100A
Current - Collector (Ic) (Max)
100 A
Input Capacitance (Cies) @ Vce
9 nF @ 25 V
Current - Collector Cutoff (Max)
1 mA
Voltage - Collector Emitter Breakdown (Max)
1700 V
| Attribute | Value |
|---|---|
| Input | Three Phase Bridge Rectifier |
| Series | EconoPACK™3 |
| IGBT Type | Trench Field Stop |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | Full Bridge Inverter |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Package / Case | Module |
| Base Product Number | F4100R |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-ECONO3B |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 100A |
| Current - Collector (Ic) (Max) | 100 A |
| Input Capacitance (Cies) @ Vce | 9 nF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
