Step1: Product

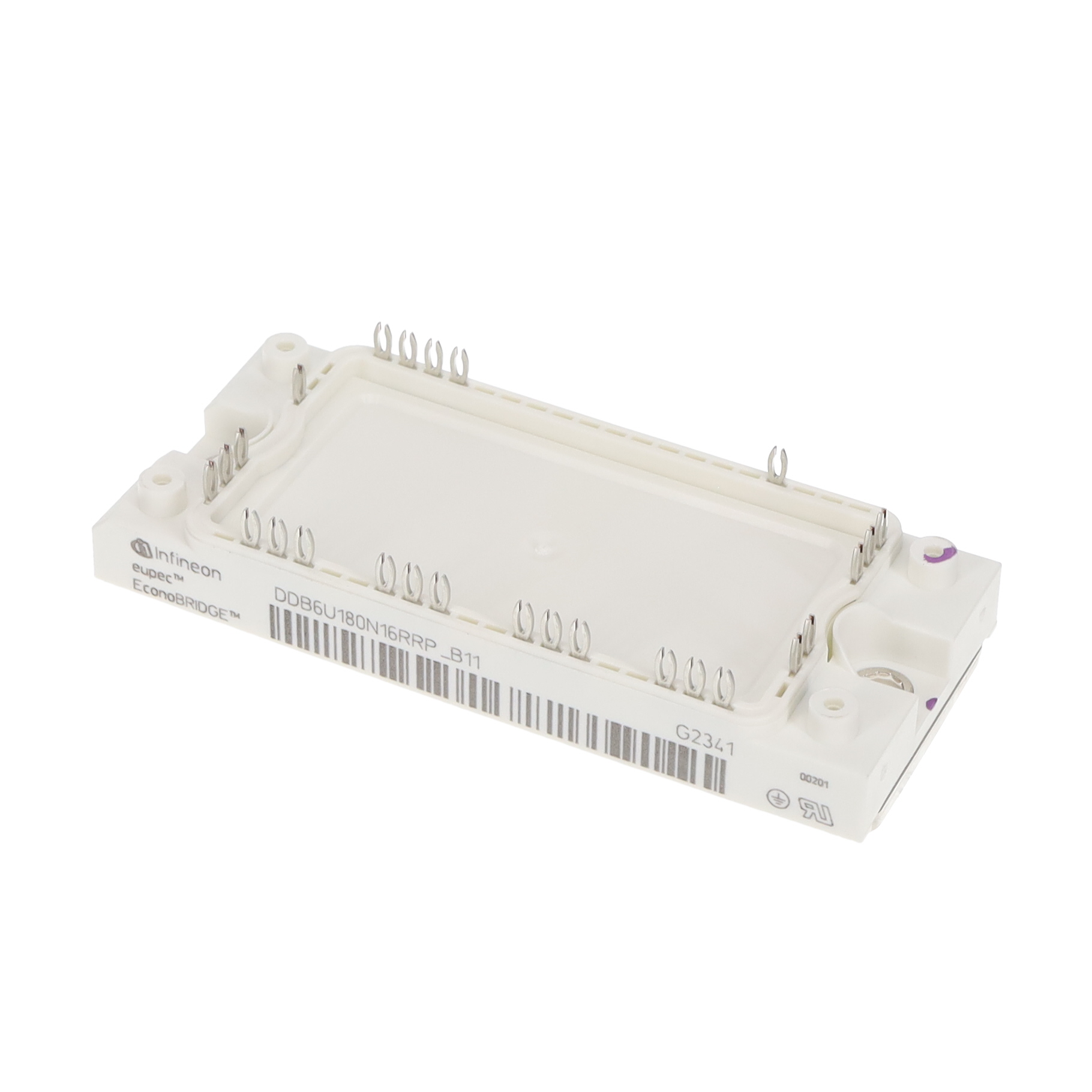

Infineon Technologies DDB6U180N16RRPB11BPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
DDB6U180N16RRPB11BPSA1
Package
Module
Packaging
Tray
Description
IGBT MOD 1200V 140A AG-ECONO2B
Detailed Description
IGBT Module Trench Field Stop Single Chopper 1200 V 140 A 515 W Chassis Mount AG-ECONO2B
Datasheet
Input
Standard
Series
EconoPACK™ 2
IGBT Type
Trench Field Stop
Packaging
Tray
Power - Max
515 W
Manufacturer
Infineon Technologies
Configuration
Single Chopper
Mounting Type
Chassis Mount
NTC Thermistor
No
Package / Case
Module
Base Product Number
DDB6U180
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
AG-ECONO2B
Vce(on) (Max) @ Vge, Ic
2.2V @ 15V, 100A
Current - Collector (Ic) (Max)
140 A
Input Capacitance (Cies) @ Vce
6.3 nF @ 25 V
Current - Collector Cutoff (Max)
1 mA
Voltage - Collector Emitter Breakdown (Max)
1200 V
| Attribute | Value |
|---|---|
| Input | Standard |
| Series | EconoPACK™ 2 |
| IGBT Type | Trench Field Stop |
| Packaging | Tray |
| Power - Max | 515 W |
| Manufacturer | Infineon Technologies |
| Configuration | Single Chopper |
| Mounting Type | Chassis Mount |
| NTC Thermistor | No |
| Package / Case | Module |
| Base Product Number | DDB6U180 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | AG-ECONO2B |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 100A |
| Current - Collector (Ic) (Max) | 140 A |
| Input Capacitance (Cies) @ Vce | 6.3 nF @ 25 V |
| Current - Collector Cutoff (Max) | 1 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
