Infineon Technologies CYW43438KUBGT

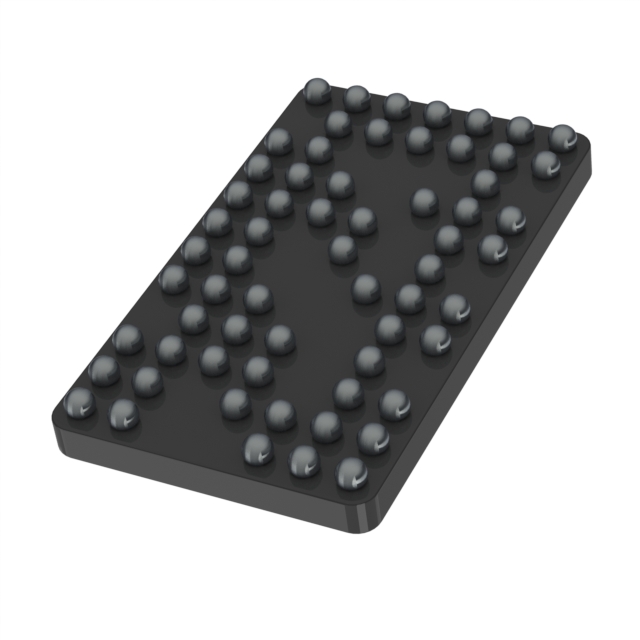

Image shown is a representation only
Manufacturer
Manufacturer No
CYW43438KUBGT
Quantity
34
Availability
In Stock
Package
63-UFBGA, WLBGA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX+MCU BLE 63WLBGA
Detailed Description
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.0 2.4GHz 63-UFBGA, WLBGA
DataSheet
Mfr
Infineon Technologies
GPIO
5
Type
TxRx + MCU
Protocol
802.11b/g/n, Bluetooth v4.0
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
8DPSK, DQPSK, GFSK
Memory Size
640kB ROM, 512kB SRAM
Part Status
Not For New Designs
Sensitivity
-99dBm
Mounting Type
Surface Mount
Package / Case
63-UFBGA, WLBGA
Power - Output
21dBm
Data Rate (Max)
54Mbps
Voltage - Supply
1.2V ~ 3.3V
Serial Interfaces
I2S, SPI, UART
RF Family/Standard
Bluetooth, WiFi
Base Product Number
CYW43438
Current - Receiving
37mA ~ 41mA
DigiKey Programmable
Not Verified
Operating Temperature
-30°C ~ 70°C
Current - Transmitting
260mA ~ 320mA
Supplier Device Package
63-WLBGA (2.87x4.87)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| GPIO | 5 |
| Type | TxRx + MCU |
| Protocol | 802.11b/g/n, Bluetooth v4.0 |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | 8DPSK, DQPSK, GFSK |
| Memory Size | 640kB ROM, 512kB SRAM |
| Part Status | Not For New Designs |
| Sensitivity | -99dBm |
| Mounting Type | Surface Mount |
| Package / Case | 63-UFBGA, WLBGA |
| Power - Output | 21dBm |
| Data Rate (Max) | 54Mbps |
| Voltage - Supply | 1.2V ~ 3.3V |
| Serial Interfaces | I2S, SPI, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Base Product Number | CYW43438 |
| Current - Receiving | 37mA ~ 41mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -30°C ~ 70°C |
| Current - Transmitting | 260mA ~ 320mA |
| Supplier Device Package | 63-WLBGA (2.87x4.87) |
