Step1: Product

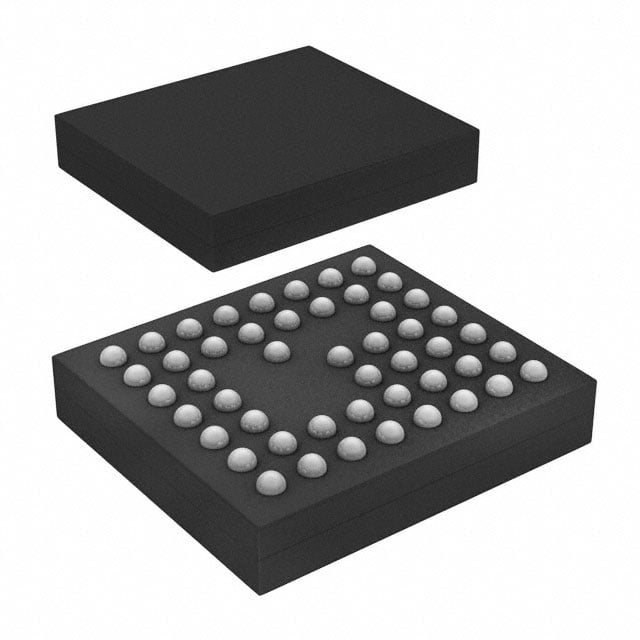

Infineon Technologies CYW20704UA2KFFB1GT
Image shown is a representation only
Manufacturer
Manufacturer No
CYW20704UA2KFFB1GT
Quantity
500
Availability
In Stock
Package
49-VFBGA, FCBGA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX+MCU BLE 49FCBGA
Detailed Description
IC RF TxRx + MCU Bluetooth Bluetooth v4.1 +EDR 2.4GHz 49-VFBGA, FCBGA
DataSheet
Mfr
Infineon Technologies
GPIO
8
Type
TxRx + MCU
Protocol
Bluetooth v4.1 +EDR
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
4DQPSK, 8DPSK, GFSK
Part Status
Active
Sensitivity
-96dBm
Mounting Type
Surface Mount
Package / Case
49-VFBGA, FCBGA
Power - Output
9dBm
Data Rate (Max)
3Mbps
Voltage - Supply
3.3V
Serial Interfaces
I2C, I2S, SPI, UART, USB
RF Family/Standard
Bluetooth
Base Product Number
CYW20704
Current - Receiving
38mA
DigiKey Programmable
Not Verified
Operating Temperature
-30°C ~ 85°C
Current - Transmitting
38mA
Supplier Device Package
49-FCBGA (4.5x4)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| GPIO | 8 |
| Type | TxRx + MCU |
| Protocol | Bluetooth v4.1 +EDR |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | 4DQPSK, 8DPSK, GFSK |
| Part Status | Active |
| Sensitivity | -96dBm |
| Mounting Type | Surface Mount |
| Package / Case | 49-VFBGA, FCBGA |
| Power - Output | 9dBm |
| Data Rate (Max) | 3Mbps |
| Voltage - Supply | 3.3V |
| Serial Interfaces | I2C, I2S, SPI, UART, USB |
| RF Family/Standard | Bluetooth |
| Base Product Number | CYW20704 |
| Current - Receiving | 38mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -30°C ~ 85°C |
| Current - Transmitting | 38mA |
| Supplier Device Package | 49-FCBGA (4.5x4) |
