Step1: Product

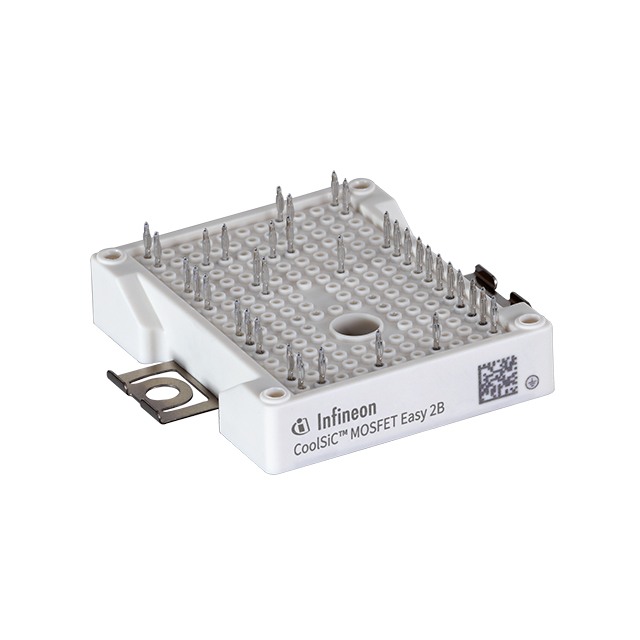

Infineon Technologies Americas Corp. FF4MR12W2M1HPB11ABPSA1
Image shown is a representation only
Manufacturer
Manufacturer No
FF4MR12W2M1HPB11ABPSA1
Package
Module
Packaging
Tray
Description
FF4MR12W2M1HPB11ABPSA1
Detailed Description
Mosfet Array 1200V (1.2kV) 190A 20mW Chassis Mount AG-EASY2B
DataSheet
Series
CoolSiC™
Packaging
Tray
Technology
Silicon Carbide (SiC)
Part Status
Active
Power - Max
20mW
Manufacturer
Infineon Technologies Americas Corp.
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
5.15V @ 80mA
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
6mOhm @ 200A, 18V
Supplier Device Package
AG-EASY2B
Gate Charge (Qg) (Max) @ Vgs
594nC @ 18V
Drain to Source Voltage (Vdss)
1200V (1.2kV)
Input Capacitance (Ciss) (Max) @ Vds
17600pF @ 800V
Current - Continuous Drain (Id) @ 25°C
190A
| Attribute | Value |
|---|---|
| Series | CoolSiC™ |
| Packaging | Tray |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Power - Max | 20mW |
| Manufacturer | Infineon Technologies Americas Corp. |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.15V @ 80mA |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 200A, 18V |
| Supplier Device Package | AG-EASY2B |
| Gate Charge (Qg) (Max) @ Vgs | 594nC @ 18V |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 17600pF @ 800V |
| Current - Continuous Drain (Id) @ 25°C | 190A |
