Step1: Product
Infineon Technologies FF4MR20KM1HHPSA1

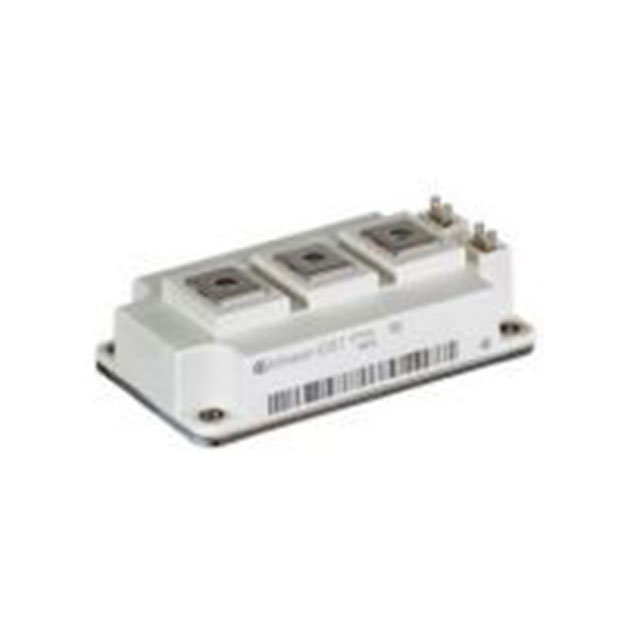

Image shown is a representation only
Manufacturer
Manufacturer No
FF4MR20KM1HHPSA1
Package
Module
Packaging
Tray
Description
MOSFET 2N-CH 2000V AG-62MMHB
Detailed Description
Mosfet Array 2000V (2kV) 280A (Tc) Chassis Mount AG-62MMHB
DataSheet
Series
C
Packaging
Tray
Technology
Silicon Carbide (SiC)
Part Status
Active
Manufacturer
Infineon Technologies
Configuration
2 N-Channel (Dual)
Mounting Type
Chassis Mount
Package / Case
Module
Vgs(th) (Max) @ Id
5.15V @ 168mA
Base Product Number
FF4MR20
Operating Temperature
-40°C ~ 175°C (TJ)
Rds On (Max) @ Id, Vgs
5.3mOhm @ 300A, 18V
Supplier Device Package
AG-62MMHB
Gate Charge (Qg) (Max) @ Vgs
1170nC @ 18V
Drain to Source Voltage (Vdss)
2000V (2kV)
Input Capacitance (Ciss) (Max) @ Vds
36100pF @ 1200V
Current - Continuous Drain (Id) @ 25°C
280A (Tc)
| Attribute | Value |
|---|---|
| Series | C |
| Packaging | Tray |
| Technology | Silicon Carbide (SiC) |
| Part Status | Active |
| Manufacturer | Infineon Technologies |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Vgs(th) (Max) @ Id | 5.15V @ 168mA |
| Base Product Number | FF4MR20 |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.3mOhm @ 300A, 18V |
| Supplier Device Package | AG-62MMHB |
| Gate Charge (Qg) (Max) @ Vgs | 1170nC @ 18V |
| Drain to Source Voltage (Vdss) | 2000V (2kV) |
| Input Capacitance (Ciss) (Max) @ Vds | 36100pF @ 1200V |
| Current - Continuous Drain (Id) @ 25°C | 280A (Tc) |
