Step1: Product

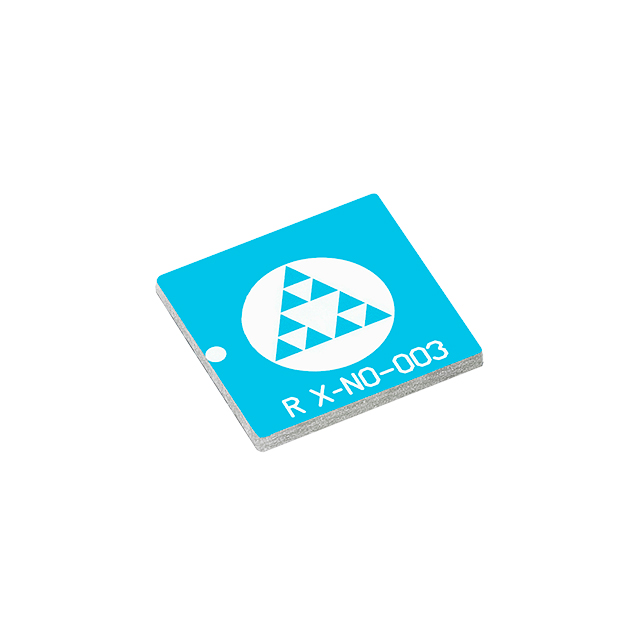

Ignion NN01-003
Image shown is a representation only
Manufacturer
Manufacturer No
NN01-003
Packaging
Tape & Reel (TR)
Description
DUAL-BAND REACH XTEND - 003
Detailed Description
RF ANTENNA 802.11a/b/g/n, WLAN Chip Solder Surface Mount
Datasheet
Gain
3.9dBi, 9dBi
VSWR
2
Series
Dual-band Reach Xtend™
Packaging
Tape & Reel (TR)
Termination
Solder
Antenna Type
Chip
Applications
802.11a/b/g/n, WLAN
Height (Max)
0.035" (0.90mm)
Manufacturer
Ignion
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz
Number of Bands
2
RF Family/Standard
WiFi
Base Product Number
NN01
Frequency (Center/Band)
2.45GHz, 5.3875GHz
| Attribute | Value |
|---|---|
| Gain | 3.9dBi, 9dBi |
| VSWR | 2 |
| Series | Dual-band Reach Xtend™ |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | 802.11a/b/g/n, WLAN |
| Height (Max) | 0.035" (0.90mm) |
| Manufacturer | Ignion |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz |
| Number of Bands | 2 |
| RF Family/Standard | WiFi |
| Base Product Number | NN01 |
| Frequency (Center/Band) | 2.45GHz, 5.3875GHz |
