Step1: Product

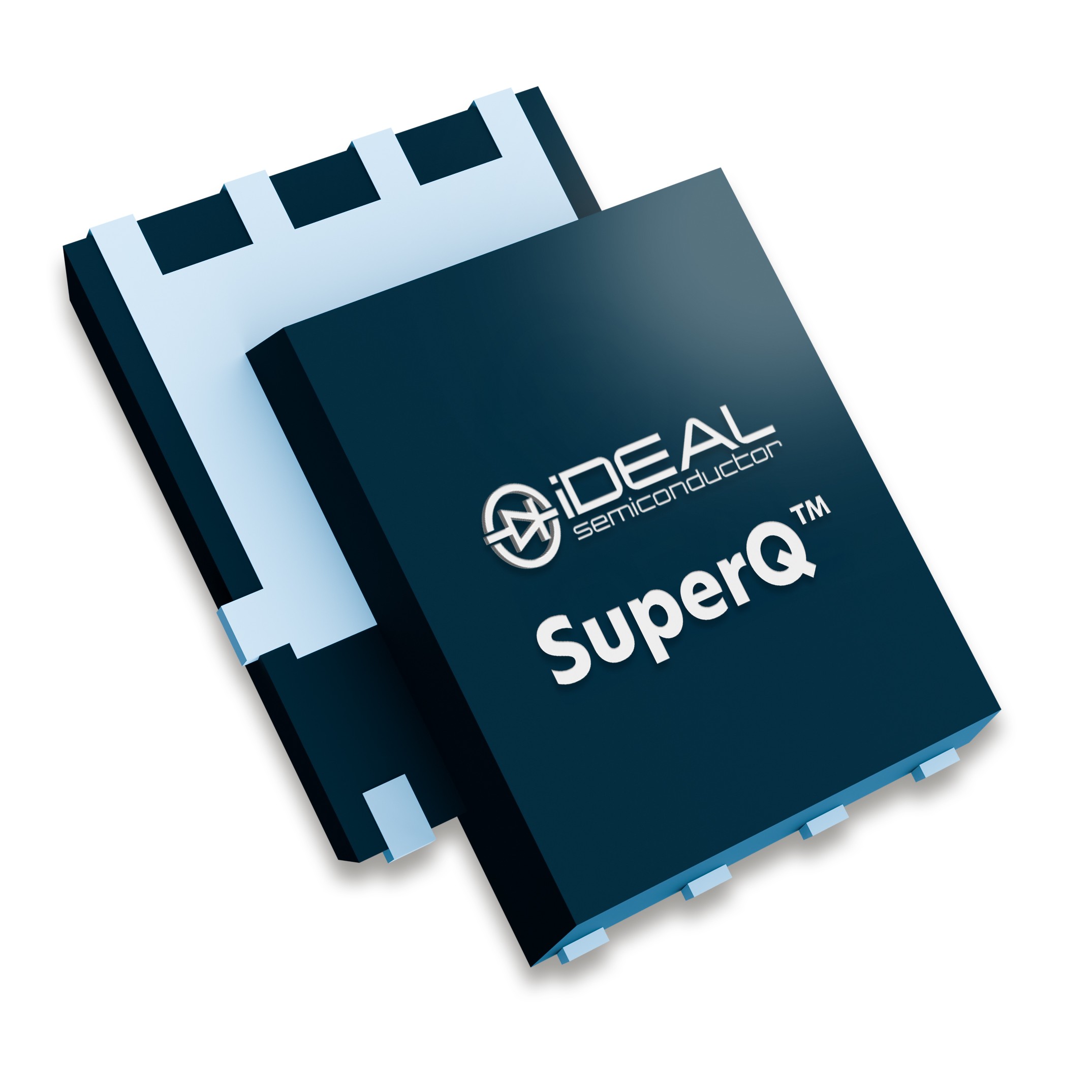

iDEAL Semiconductor IS20M028S1C
Image shown is a representation only
Manufacturer
Manufacturer No
IS20M028S1C
Package
8-PowerTDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET N-CH 200V 45A PDFN-8
Detailed Description
N-Channel 200 V 45A (Tc) 125W (Tc) Surface Mount 8-PDFN (5x6)
DataSheet
Mfr
iDEAL Semiconductor
Series
SuperQ™
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
8-PowerTDFN
Vgs(th) (Max) @ Id
4.1V @ 70µA
Operating Temperature
-55°C ~ 175°C
Power Dissipation (Max)
125W (Tc)
Supplier Device Package
8-PDFN (5x6)
Gate Charge (Qg) (Max) @ Vgs
36 nC @ 10 V
Drain to Source Voltage (Vdss)
200 V
Input Capacitance (Ciss) (Max) @ Vds
2451 pF @ 100 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
45A (Tc)
| Attribute | Value |
|---|---|
| Mfr | iDEAL Semiconductor |
| Series | SuperQ™ |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Vgs(th) (Max) @ Id | 4.1V @ 70µA |
| Operating Temperature | -55°C ~ 175°C |
| Power Dissipation (Max) | 125W (Tc) |
| Supplier Device Package | 8-PDFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 36 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 200 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2451 pF @ 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
