Step1: Product

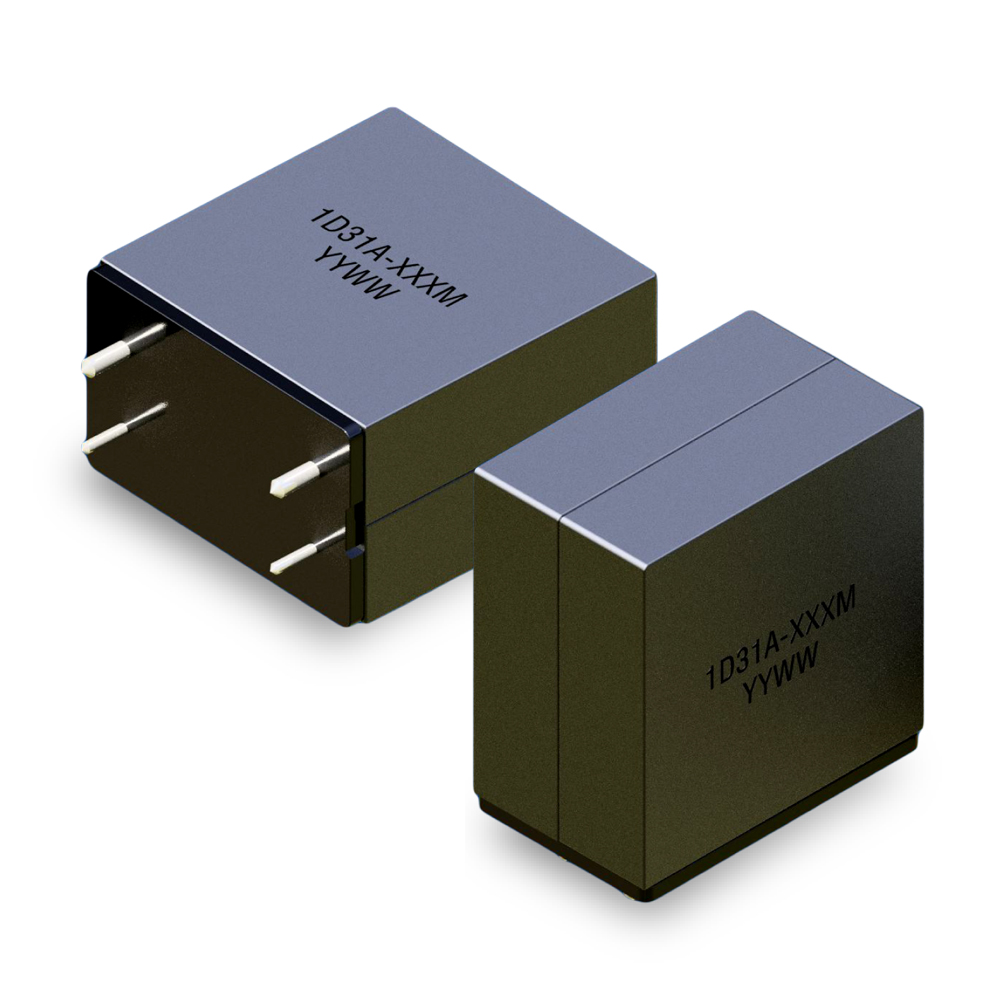

ICE Components, Inc. 1D31A-100MC
Image shown is a representation only
Manufacturer
Manufacturer No
1D31A-100MC
Package
Nonstandard
Packaging
Tray
Description
FIXED IND 10UH 12.5A 6.3 MOHM TH
Detailed Description
10 µH Shielded Wirewound Inductor 12.5 A 6.3mOhm Max Nonstandard
DataSheet
Mfr
ICE Components, Inc.
Type
Wirewound
Series
1D31A
Packaging
Tray
Shielding
Shielded
Tolerance
±20%
Inductance
10 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
1.259" L x 0.787" W (32.00mm x 20.00mm)
DC Resistance (DCR)
6.3mOhm Max
Current Rating (Amps)
12.5 A
Height - Seated (Max)
1.300" (33.02mm)
Operating Temperature
-40°C ~ 130°C
Supplier Device Package
Vertical, 4 PC Pin
Frequency - Self Resonant
19MHz
Current - Saturation (Isat)
50A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | ICE Components, Inc. |
| Type | Wirewound |
| Series | 1D31A |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 10 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 1.259" L x 0.787" W (32.00mm x 20.00mm) |
| DC Resistance (DCR) | 6.3mOhm Max |
| Current Rating (Amps) | 12.5 A |
| Height - Seated (Max) | 1.300" (33.02mm) |
| Operating Temperature | -40°C ~ 130°C |
| Supplier Device Package | Vertical, 4 PC Pin |
| Frequency - Self Resonant | 19MHz |
| Current - Saturation (Isat) | 50A |
| Inductance Frequency - Test | 100 kHz |
