Step1: Product

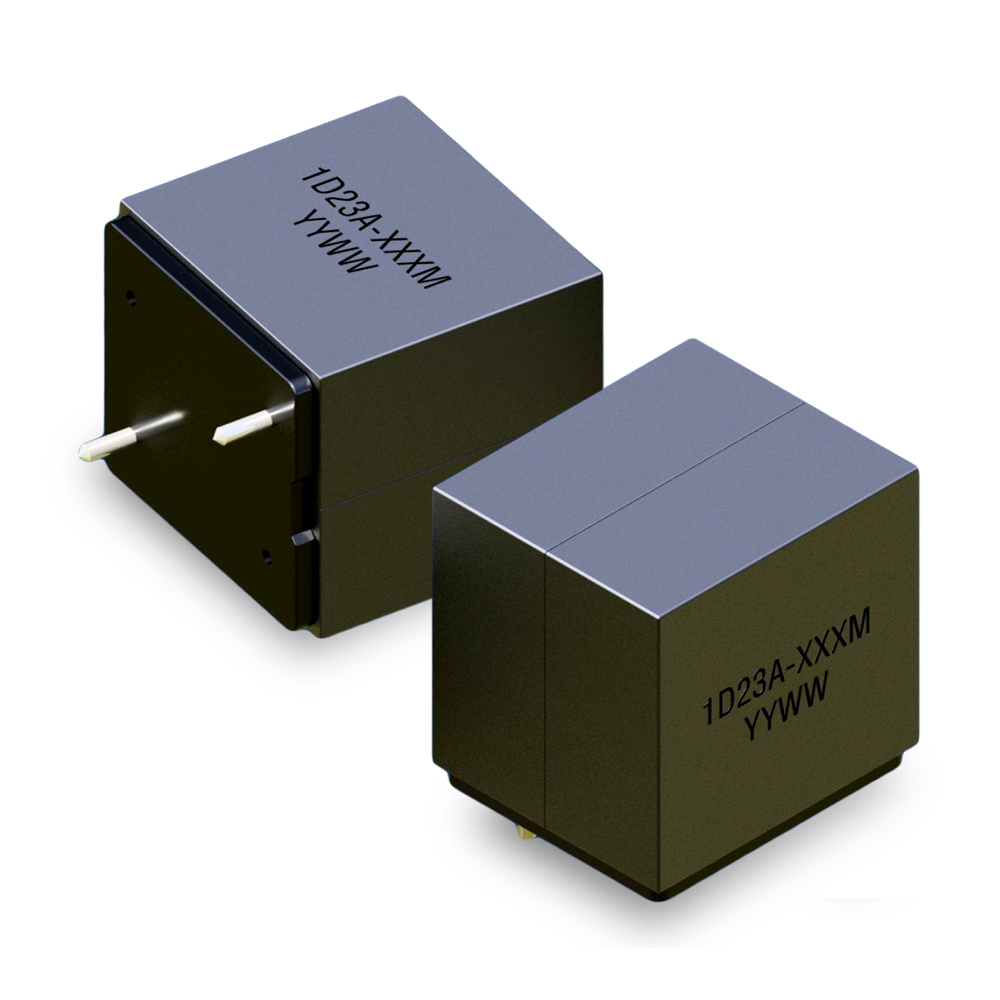

ICE Components, Inc. 1D23A-220M
Image shown is a representation only
Manufacturer
Manufacturer No
1D23A-220M
Package
Nonstandard
Packaging
Tray
Description
FIXED IND 22UH 9.4A 9.6 MOHM TH
Detailed Description
22 µH Shielded Wirewound Inductor 9.4 A 9.6mOhm Max Nonstandard
DataSheet
Mfr
ICE Components, Inc.
Type
Wirewound
Series
1D23A
Packaging
Tray
Shielding
Shielded
Tolerance
±20%
Inductance
22 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Nonstandard
Material - Core
Ferrite
Size / Dimension
0.944" L x 0.834" W (24.00mm x 21.20mm)
DC Resistance (DCR)
9.6mOhm Max
Current Rating (Amps)
9.4 A
Height - Seated (Max)
0.910" (23.11mm)
Operating Temperature
-40°C ~ 130°C
Supplier Device Package
Vertical, 2 PC Pin
Frequency - Self Resonant
19MHz
Current - Saturation (Isat)
18.5A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | ICE Components, Inc. |
| Type | Wirewound |
| Series | 1D23A |
| Packaging | Tray |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 22 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Material - Core | Ferrite |
| Size / Dimension | 0.944" L x 0.834" W (24.00mm x 21.20mm) |
| DC Resistance (DCR) | 9.6mOhm Max |
| Current Rating (Amps) | 9.4 A |
| Height - Seated (Max) | 0.910" (23.11mm) |
| Operating Temperature | -40°C ~ 130°C |
| Supplier Device Package | Vertical, 2 PC Pin |
| Frequency - Self Resonant | 19MHz |
| Current - Saturation (Isat) | 18.5A |
| Inductance Frequency - Test | 100 kHz |
