Step1: Product

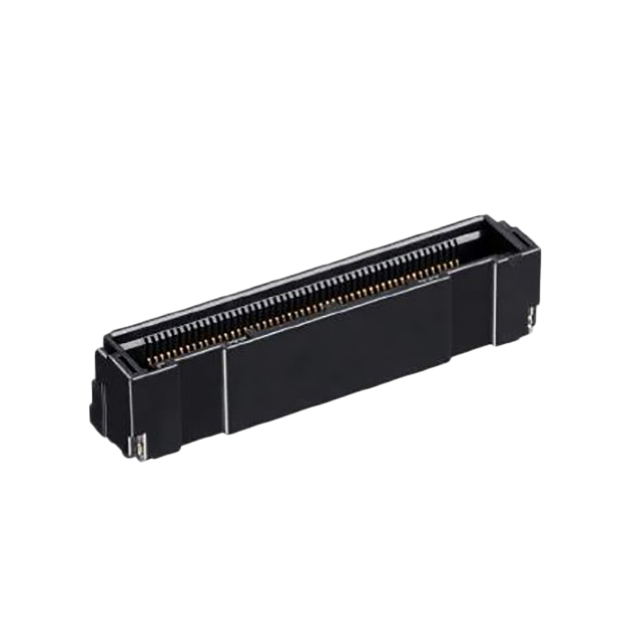

Hirose Electric Co Ltd TF70-50S-0.5SV(800)
Image shown is a representation only
Manufacturer
Manufacturer No
TF70-50S-0.5SV(800)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RECEPTACLE 50POS 0.5MM PITCH
Detailed Description
50 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
DataSheet
Pitch
0.020" (0.50mm)
Series
TF70
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Black
Mounting Type
Surface Mount
Cable End Type
Tabbed, Tapered
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Housing Material
Polybutylene Terephthalate (PBT)
FFC, FCB Thickness
0.30mm
Height Above Board
0.222" (5.65mm)
Number of Positions
50
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 105°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | TF70 |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Black |
| Mounting Type | Surface Mount |
| Cable End Type | Tabbed, Tapered |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Housing Material | Polybutylene Terephthalate (PBT) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.222" (5.65mm) |
| Number of Positions | 50 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 105°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
