Step1: Product

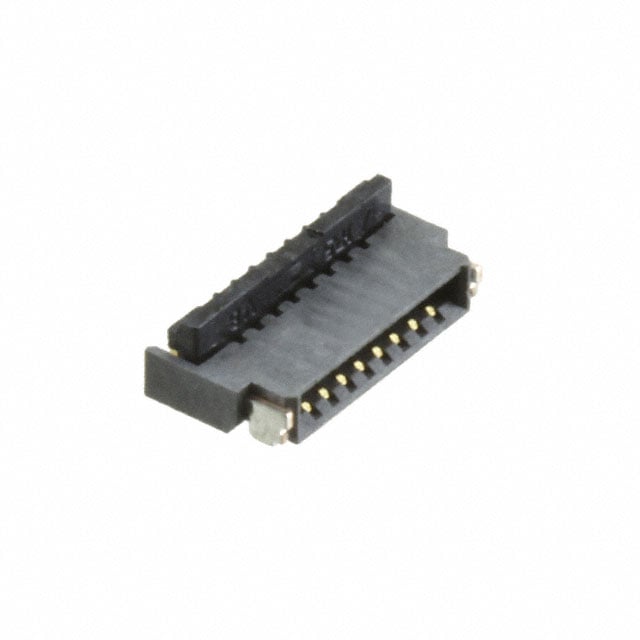

Hirose Electric Co Ltd FH34SRJ-8S-0.5SH(50)
Image shown is a representation only
Manufacturer
Manufacturer No
FH34SRJ-8S-0.5SH(50)
Quantity
88,695
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC FPC 8POS 0.5MM R/A
Detailed Description
8 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Pitch
0.020" (0.50mm)
Series
FH34SRJ
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Gray
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Rotary Lock, Backlock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material
Polyamide (PA), Nylon
FFC, FCB Thickness
0.30mm
Height Above Board
0.039" (1.00mm)
Base Product Number
FH34SRJ
Number of Positions
8
Current Rating (Amps)
0.5A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Top and Bottom
Contact Finish Thickness
1.97µin (0.050µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FH34SRJ |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Gray |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Rotary Lock, Backlock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Material | Polyamide (PA), Nylon |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Base Product Number | FH34SRJ |
| Number of Positions | 8 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish Thickness | 1.97µin (0.050µm) |
| Material Flammability Rating | UL94 V-0 |
