Step1: Product

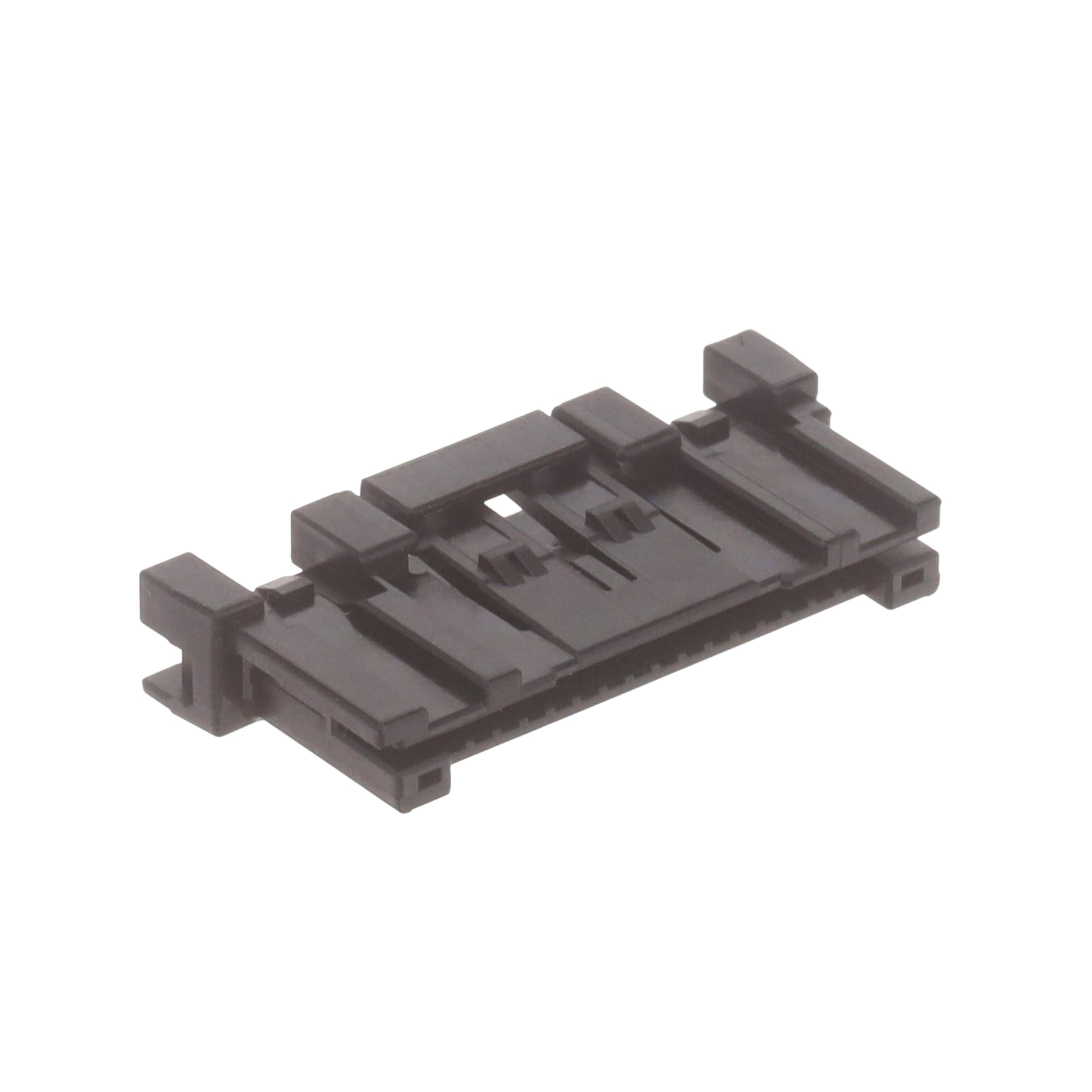

Hirose Electric Co Ltd TB4-16P-1F(800)
Image shown is a representation only
Manufacturer
Manufacturer No
TB4-16P-1F(800)
Quantity
100
Availability
In Stock
Packaging
Bag
Description
PLUG, 16 POS., 1.0MM PITCH, 1.0A
Detailed Description
16 Position FPC Connector Plug 0.039" (1.00mm) Surface Mount, Right Angle
DataSheet
Pitch
0.039" (1.00mm)
Series
TB4
Packaging
Bag
Part Status
Active
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Black
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Cable End Type
Tabbed, Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
100V
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon
FFC, FCB Thickness
0.30mm
Height Above Board
0.171" (4.35mm)
Number of Positions
16
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 125°C
Connector/Contact Type
Plug
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | TB4 |
| Packaging | Bag |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Black |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Tabbed, Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 100V |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.171" (4.35mm) |
| Number of Positions | 16 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Connector/Contact Type | Plug |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
