Step1: Product

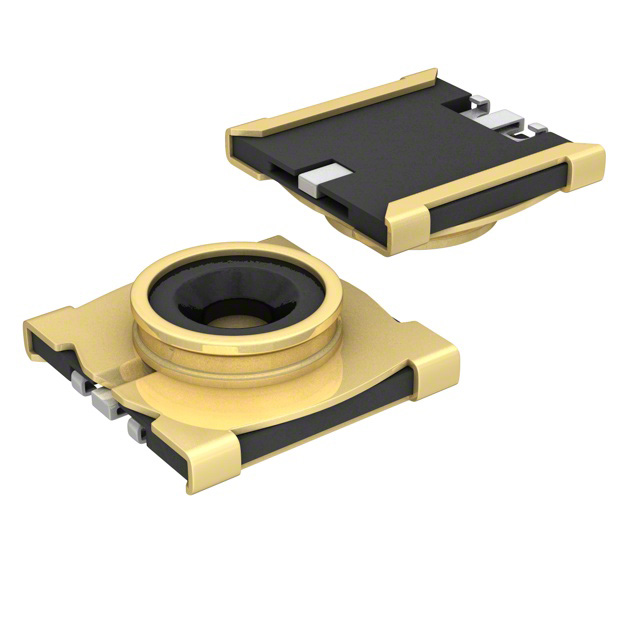

Hirose Electric Co Ltd MS-180
Image shown is a representation only
Manufacturer
Manufacturer No
MS-180
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN COAX JACK STR 50 OHM SMD
Detailed Description
Coaxial Switch - 2.24mm Plug Dia Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
DataSheet
Mfr
Hirose Electric Co Ltd
Series
MS-180
Features
Internal Switch
Impedance
50 Ohms
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Body Finish
Gold
Part Status
Active
Body Material
Brass
Housing Color
Gold
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Snap-On
Insertion Loss
0.3dB
Connector Style
Coaxial Switch - 2.24mm Plug Dia
Frequency - Max
11 GHz
Number of Ports
1
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Series | MS-180 |
| Features | Internal Switch |
| Impedance | 50 Ohms |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Body Finish | Gold |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Snap-On |
| Insertion Loss | 0.3dB |
| Connector Style | Coaxial Switch - 2.24mm Plug Dia |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
