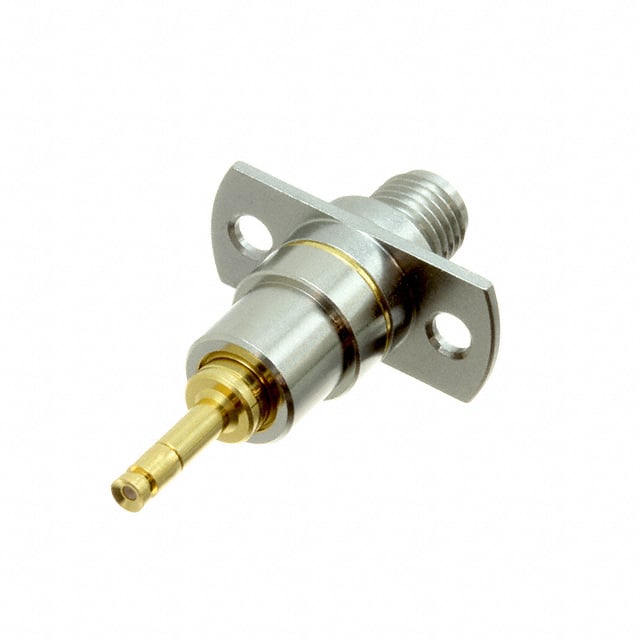

Hirose Electric Co Ltd MS-180-HRMJ-F6
Image shown is a representation only
Manufacturer
Manufacturer No
MS-180-HRMJ-F6
Packaging
Bag
Description
COAX ADAPT SMA TO COAX SWITCH
Detailed Description
Adapter Coaxial Connector Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Straight
Series
MS-180
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold, Passivated
Part Status
Active
Adapter Type
Plug to Jack
Body Material
Beryllium Copper, Stainless Steel
Center Gender
Female to Male
Mounting Type
Panel Mount
Adapter Series
SMA to Coaxial Switch
Fastening Type
Push-Pull, Threaded
Insertion Loss
0.70dB
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
Flange
Base Product Number
MS-180
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMA Jack, Female Socket
Convert From (Adapter End)
Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Straight |
| Series | MS-180 |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold, Passivated |
| Part Status | Active |
| Adapter Type | Plug to Jack |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Gender | Female to Male |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to Coaxial Switch |
| Fastening Type | Push-Pull, Threaded |
| Insertion Loss | 0.70dB |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | Flange |
| Base Product Number | MS-180 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | Coaxial Switch - 2.24mm Plug Dia Plug, Male Pin |
