Step1: Product

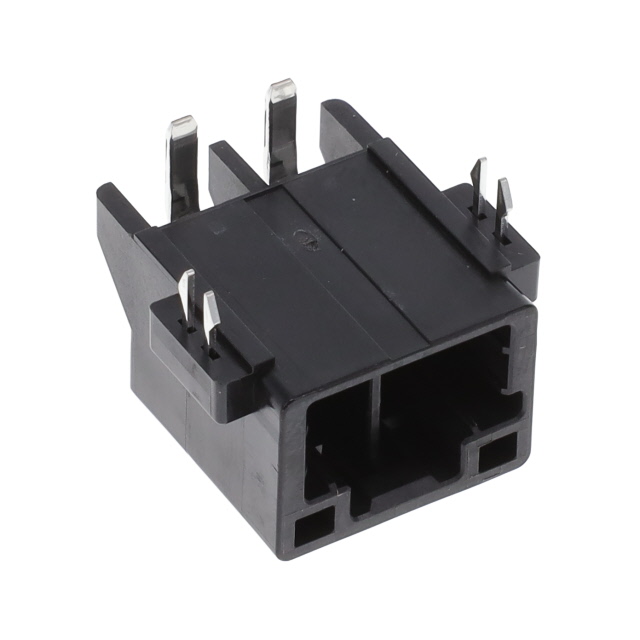

Hirose Electric Co Ltd HVH-280-2P-6.5DS
Image shown is a representation only
Manufacturer
Manufacturer No
HVH-280-2P-6.5DS
Quantity
56
Availability
In Stock
Packaging
Tray
Description
AUTOMOTIVE CONN, RA, 6.5MM, THT,
Detailed Description
Connector Header Through Hole, Right Angle 2 position 0.256" (6.50mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
HVH-280
Features
Board Lock
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.256" (6.50mm)
Voltage Rating
600VAC/DC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.500" (12.70mm)
Base Product Number
HVH-280
Insulation Material
Polyamide (PA), Nylon
Number of Positions
2
Contact Finish - Post
Tin
Contact Length - Post
0.144" (3.66mm)
Current Rating (Amps)
30A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | HVH-280 |
| Features | Board Lock |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.256" (6.50mm) |
| Voltage Rating | 600VAC/DC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.500" (12.70mm) |
| Base Product Number | HVH-280 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.144" (3.66mm) |
| Current Rating (Amps) | 30A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
