Step1: Product

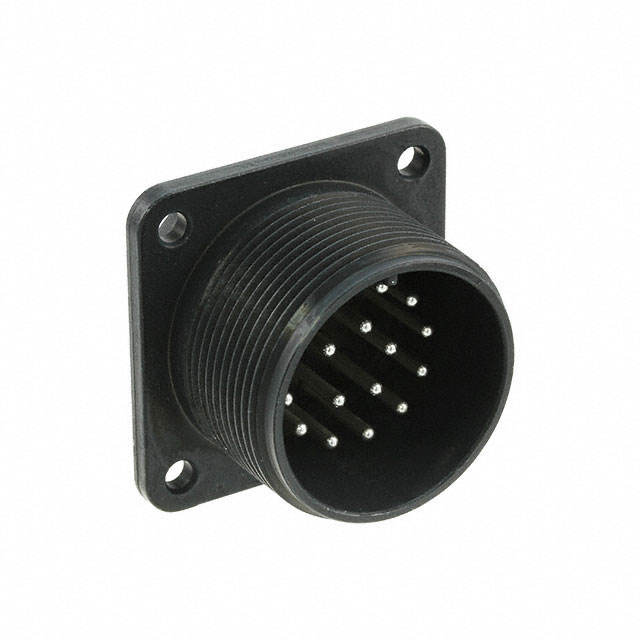

Hirose Electric Co Ltd H/MS3102A20-29PW(74)
Image shown is a representation only
Manufacturer
Manufacturer No
H/MS3102A20-29PW(74)
Packaging
Bag
Description
CONN RCPT MALE 17P SOLDER CUP
Detailed Description
17 Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
H/MS
Packaging
Bag
Shielding
Unshielded
Orientation
W
Part Status
Obsolete
Termination
Solder Cup
Shell Finish
Black Chromate
Cable Opening
1.165" (29.60mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Voltage Rating
500VAC, 700VDC
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
H/MS
Number of Positions
17
Shell Size - Insert
20-29
Current Rating (Amps)
13A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Silver
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | H/MS |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | W |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Shell Finish | Black Chromate |
| Cable Opening | 1.165" (29.60mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Voltage Rating | 500VAC, 700VDC |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | H/MS |
| Number of Positions | 17 |
| Shell Size - Insert | 20-29 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Silver |
