Step1: Product

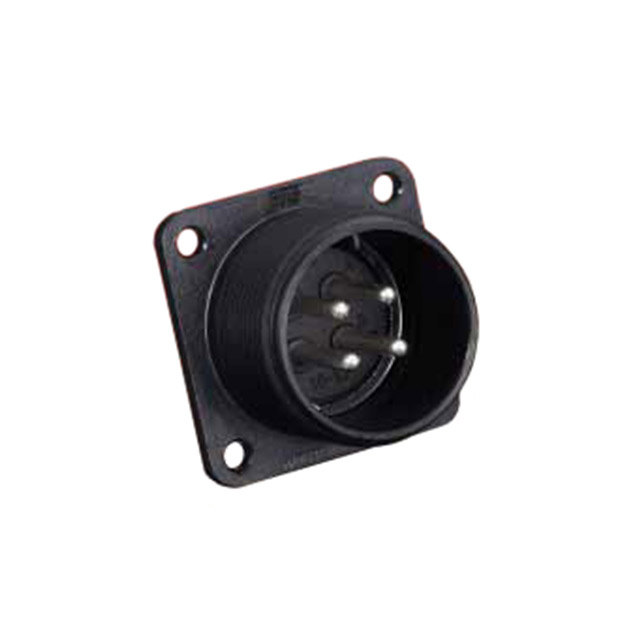

Hirose Electric Co Ltd H/MS3102A18-10P-D-T1(73)
Image shown is a representation only
Manufacturer
Manufacturer No
H/MS3102A18-10P-D-T1(73)
Packaging
Bag
Description
CONN RCPT MALE 4P SILV SLDR CUP
Detailed Description
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
DataSheet
Mfr
Hirose Electric Co Ltd
Color
Black
Series
H/MS
Features
Ground
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Obsolete
Termination
Solder Cup
Shell Finish
Black Chromate
Cable Opening
1.047" (26.60mm)
Mounting Type
Panel Mount
Connector Type
Receptacle, Male Pins
Fastening Type
Threaded
Shell Material
Aluminum Alloy
Insert Material
Polyphenylene Sulfide (PPS)
Contact Material
Brass
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP67/IP68 - Dust Tight, Waterproof
Base Product Number
H/MS
Number of Positions
4 (3 + PE)
Shell Size - Insert
18-10
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Silver
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Color | Black |
| Series | H/MS |
| Features | Ground |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Obsolete |
| Termination | Solder Cup |
| Shell Finish | Black Chromate |
| Cable Opening | 1.047" (26.60mm) |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Aluminum Alloy |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Brass |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Base Product Number | H/MS |
| Number of Positions | 4 (3 + PE) |
| Shell Size - Insert | 18-10 |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
