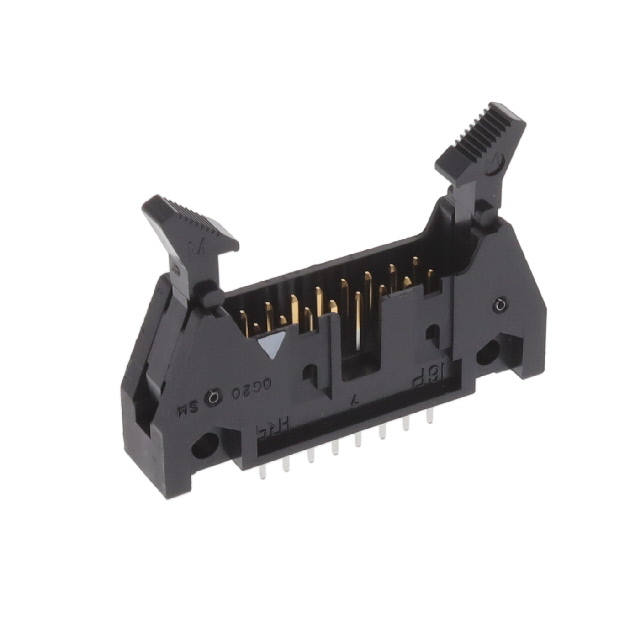

Hirose Electric Co Ltd HIF3BA-16PA-2.54DSA(63)
Image shown is a representation only
Manufacturer
Manufacturer No
HIF3BA-16PA-2.54DSA(63)
Quantity
16
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 16POS 2.54MM
Detailed Description
Connector Header Through Hole 16 position 0.100" (2.54mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
HIF3B
Features
Keying Slot
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Last Time Buy
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock/Eject Hooks
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
200V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.701" (17.80mm)
Base Product Number
HIF3BA
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
16
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-55°C ~ 85°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | HIF3B |
| Features | Keying Slot |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Last Time Buy |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 200V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.701" (17.80mm) |
| Base Product Number | HIF3BA |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
