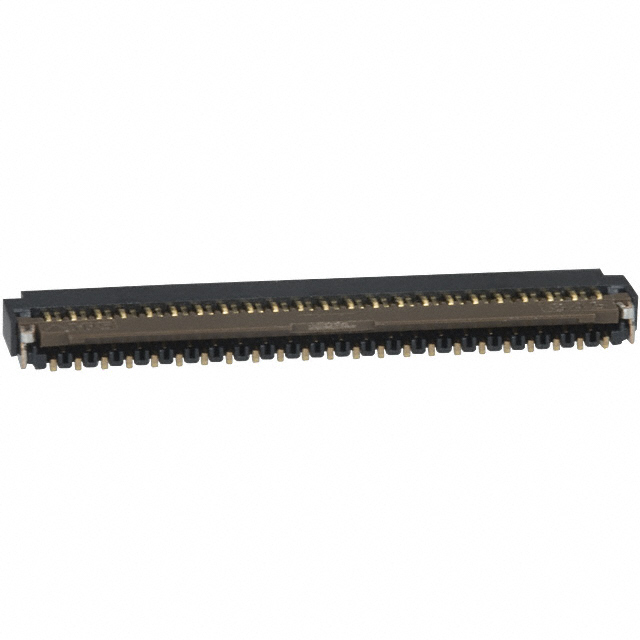

Hirose Electric Co Ltd FH26W-45S-0.3SHW(60)
Image shown is a representation only
Manufacturer
Manufacturer No
FH26W-45S-0.3SHW(60)
Quantity
4,770
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FPC BOTTOM 45POS 0.3MM R/A
Detailed Description
45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
Pitch
0.012" (0.30mm)
Series
FH26
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Black
Mating Cycles
10
Mounting Type
Surface Mount, Right Angle
Actuator Color
Brown
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
30V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Polyamide (PA), Nylon
FFC, FCB Thickness
0.20mm
Height Above Board
0.039" (1.00mm)
Base Product Number
FH26
Number of Positions
45
Current Rating (Amps)
0.2A
Operating Temperature
-55°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Pitch | 0.012" (0.30mm) |
| Series | FH26 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Black |
| Mating Cycles | 10 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Brown |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 30V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Polyamide (PA), Nylon |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Base Product Number | FH26 |
| Number of Positions | 45 |
| Current Rating (Amps) | 0.2A |
| Operating Temperature | -55°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 HB |
