Step1: Product

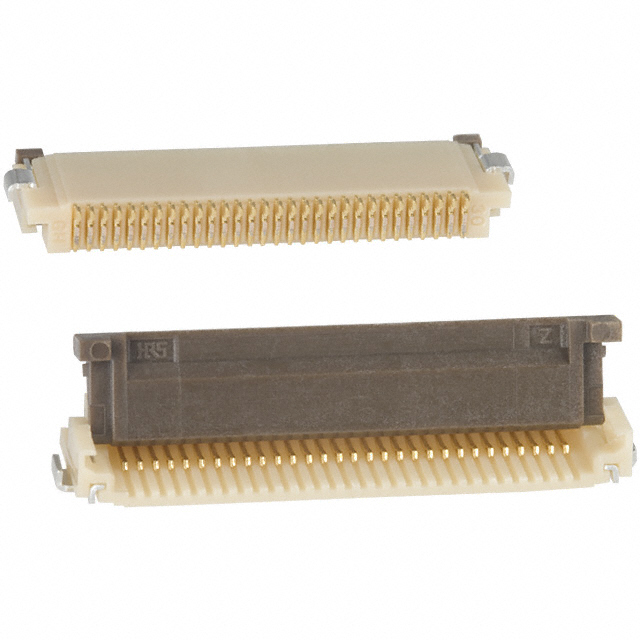

Hirose Electric Co Ltd FH12-30S-0.5SH(55)
Image shown is a representation only
Manufacturer
Manufacturer No
FH12-30S-0.5SH(55)
Quantity
2297
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN FFC BOTTOM 30POS 0.5MM R/A
Detailed Description
30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
DataSheet
Pitch
0.020" (0.50mm)
Series
FH12
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Manufacturer
Hirose Electric Co Ltd
Housing Color
Beige
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Brown
Cable End Type
Straight
Contact Finish
Gold
Flat Flex Type
FFC, FPC
Voltage Rating
50V
Locking Feature
Flip Lock
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA), Nylon
Actuator Material
Polyphenylene Sulfide (PPS)
FFC, FCB Thickness
0.30mm
Height Above Board
0.079" (2.00mm)
Base Product Number
FH12
Number of Positions
30
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 85°C
Connector/Contact Type
Contacts, Bottom
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | FH12 |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Beige |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Brown |
| Cable End Type | Straight |
| Contact Finish | Gold |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 50V |
| Locking Feature | Flip Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Base Product Number | FH12 |
| Number of Positions | 30 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 85°C |
| Connector/Contact Type | Contacts, Bottom |
| Material Flammability Rating | UL94 V-0 |
