Step1: Product

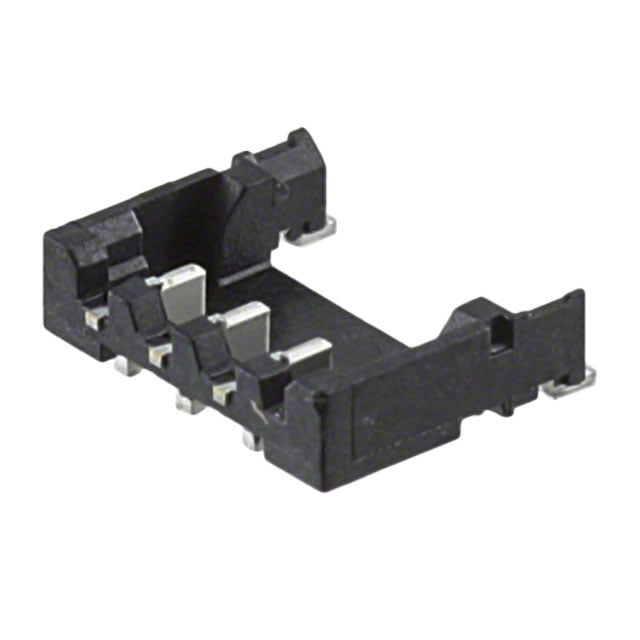

Hirose Electric Co Ltd DF57H-3P-1.2V(21)
Image shown is a representation only
Manufacturer
Manufacturer No
DF57H-3P-1.2V(21)
Quantity
1185
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 3POS 1.2MM
Detailed Description
Connector Header Surface Mount 3 position 0.047" (1.20mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF57H
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Swing Lock
Number of Rows
1
Pitch - Mating
0.047" (1.20mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.055" (1.40mm)
Base Product Number
DF57H
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
3
Contact Finish - Post
Tin
Operating Temperature
-35°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF57H |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Swing Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.047" (1.20mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.055" (1.40mm) |
| Base Product Number | DF57H |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Operating Temperature | -35°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
