Step1: Product

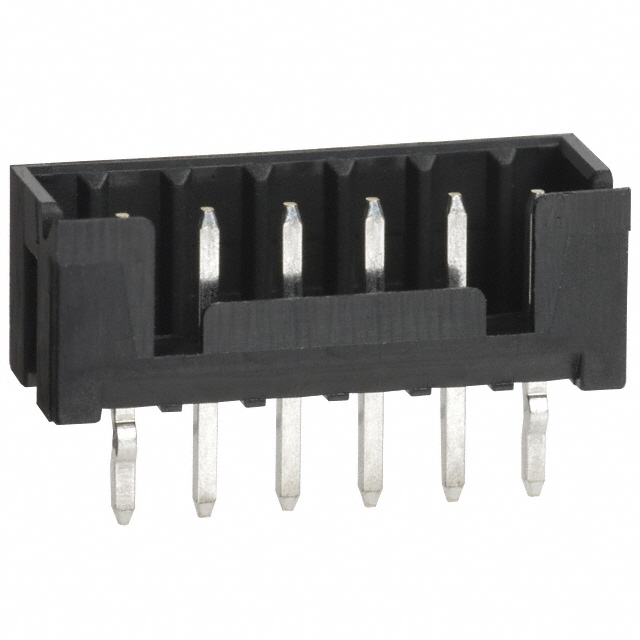

Hirose Electric Co Ltd DF3A-6P-2DSA
Image shown is a representation only
Manufacturer
Manufacturer No
DF3A-6P-2DSA
Quantity
3355
Availability
In Stock
Packaging
Bag
Description
CONN HEADER VERT 6POS 2MM
Detailed Description
Connector Header Through Hole 6 position 0.079" (2.00mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Board or Cable
Series
DF3
Packaging
Bag
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Press-Fit, Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.197" (5.00mm)
Base Product Number
DF3A
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
5mm
Overall Contact Length
0.299" (7.60mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.122" (3.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Board or Cable |
| Series | DF3 |
| Packaging | Bag |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Press-Fit, Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.197" (5.00mm) |
| Base Product Number | DF3A |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Mated Stacking Heights | 5mm |
| Overall Contact Length | 0.299" (7.60mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.122" (3.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
