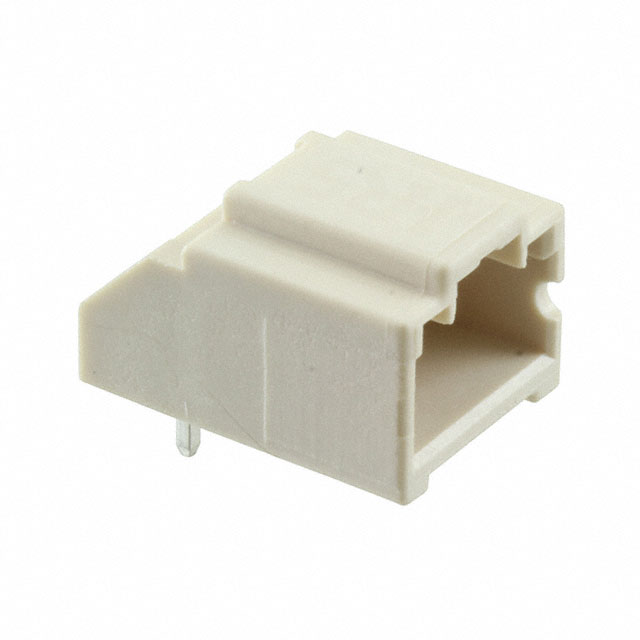

Hirose Electric Co Ltd DF1E-3P-2.5DS(35)
Image shown is a representation only
Manufacturer
Manufacturer No
DF1E-3P-2.5DS(35)
Quantity
101
Availability
In Stock
Packaging
Bag
Description
CONN HEADER R/A 3POS 2.5MM
Detailed Description
Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
DataSheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF1E
Packaging
Bag
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.315" (8.00mm)
Base Product Number
DF1E
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
3A
Operating Temperature
-35°C ~ 85°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.177" (4.50mm)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF1E |
| Packaging | Bag |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.315" (8.00mm) |
| Base Product Number | DF1E |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -35°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.177" (4.50mm) |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
