Step1: Product

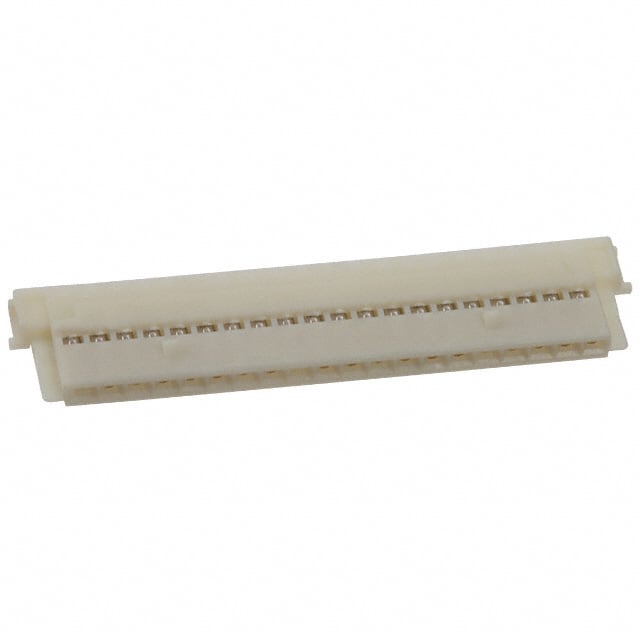

Hirose Electric Co Ltd DF19G-20S-1F(05)
Image shown is a representation only
Manufacturer
Manufacturer No
DF19G-20S-1F(05)
Quantity
12
Availability
In Stock
Packaging
Bulk
Description
CONN FPC RCPT 20POS 1MM
Detailed Description
20 Position FPC Connector Receptacle 0.039" (1.00mm) Free Hanging (In-Line)
DataSheet
Pitch
0.039" (1.00mm)
Series
DF19
Packaging
Bulk
Part Status
Active
Termination
IDC
Manufacturer
Hirose Electric Co Ltd
Housing Color
Beige
Mounting Type
Free Hanging (In-Line)
Cable End Type
Tapered
Contact Finish
Gold
Flat Flex Type
FPC
Voltage Rating
100V
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA), Nylon
FFC, FCB Thickness
0.14mm
Base Product Number
DF19G
Number of Positions
20
Current Rating (Amps)
0.5A
Operating Temperature
-35°C ~ 85°C
Connector/Contact Type
Receptacle
Contact Finish Thickness
3.94µin (0.10µm)
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | DF19 |
| Packaging | Bulk |
| Part Status | Active |
| Termination | IDC |
| Manufacturer | Hirose Electric Co Ltd |
| Housing Color | Beige |
| Mounting Type | Free Hanging (In-Line) |
| Cable End Type | Tapered |
| Contact Finish | Gold |
| Flat Flex Type | FPC |
| Voltage Rating | 100V |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA), Nylon |
| FFC, FCB Thickness | 0.14mm |
| Base Product Number | DF19G |
| Number of Positions | 20 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -35°C ~ 85°C |
| Connector/Contact Type | Receptacle |
| Contact Finish Thickness | 3.94µin (0.10µm) |
| Material Flammability Rating | UL94 V-0 |
