Step1: Product

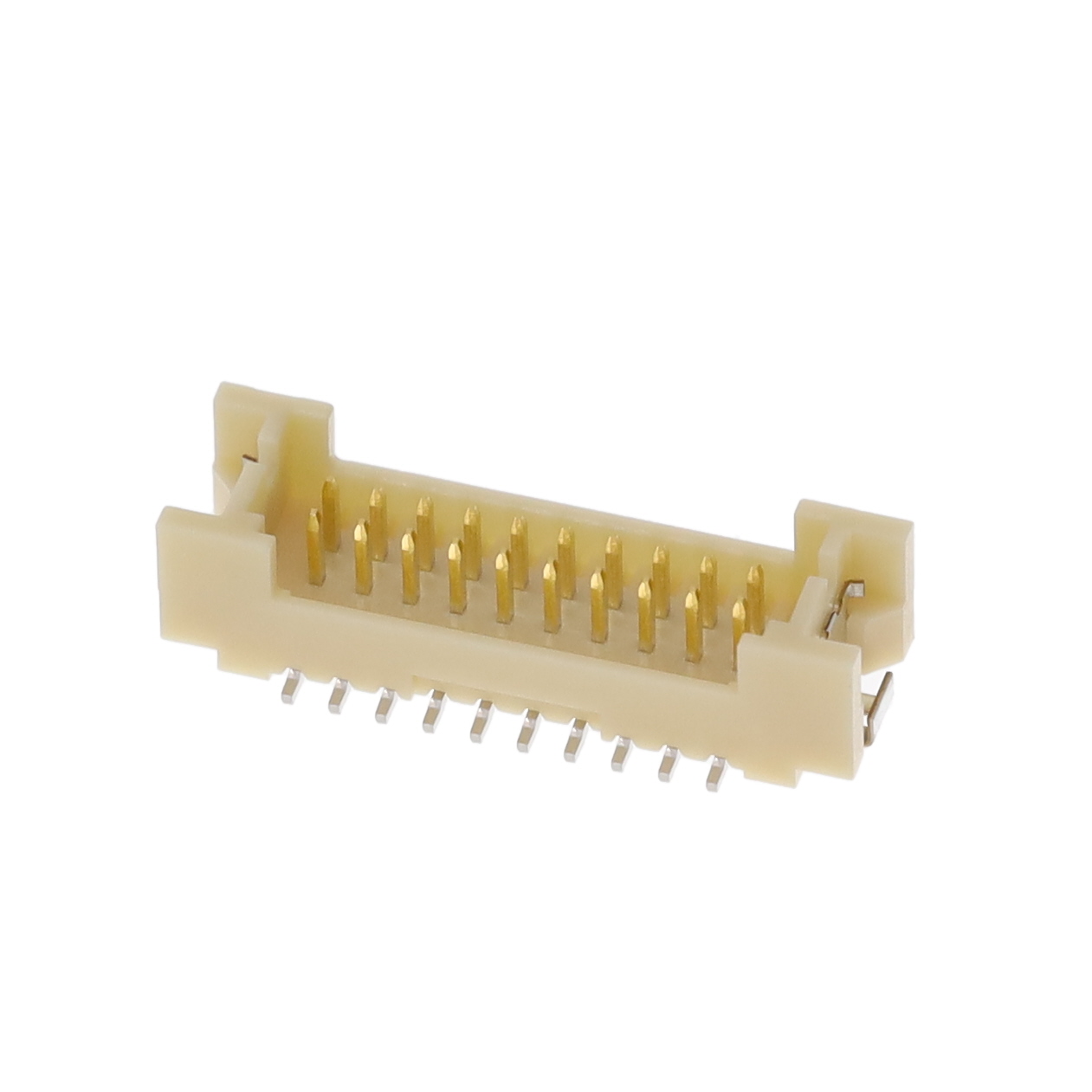

Hirose Electric Co Ltd DF13E-20DP-1.25V(65)
Image shown is a representation only
Manufacturer
Manufacturer No
DF13E-20DP-1.25V(65)
Quantity
16
Availability
In Stock
Packaging
Tube
Description
CONN HEADER SMD 20POS 1.25MM
Detailed Description
Connector Header Surface Mount 20 position 0.049" (1.25mm)
Datasheet
Mfr
Hirose Electric Co Ltd
Style
Board to Cable/Wire
Series
DF13
Features
Solder Retention
Packaging
Tube
Shrouding
Shrouded - 2 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
29.9VAC/DC
Contact Material
Brass
Insulation Color
Beige
Insulation Height
0.189" (4.80mm)
Base Product Number
DF13E
Insulation Material
Polyamide (PA), Nylon
Number of Positions
20
Row Spacing - Mating
0.049" (1.25mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-35°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Hirose Electric Co Ltd |
| Style | Board to Cable/Wire |
| Series | DF13 |
| Features | Solder Retention |
| Packaging | Tube |
| Shrouding | Shrouded - 2 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 29.9VAC/DC |
| Contact Material | Brass |
| Insulation Color | Beige |
| Insulation Height | 0.189" (4.80mm) |
| Base Product Number | DF13E |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -35°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
