Step1: Product

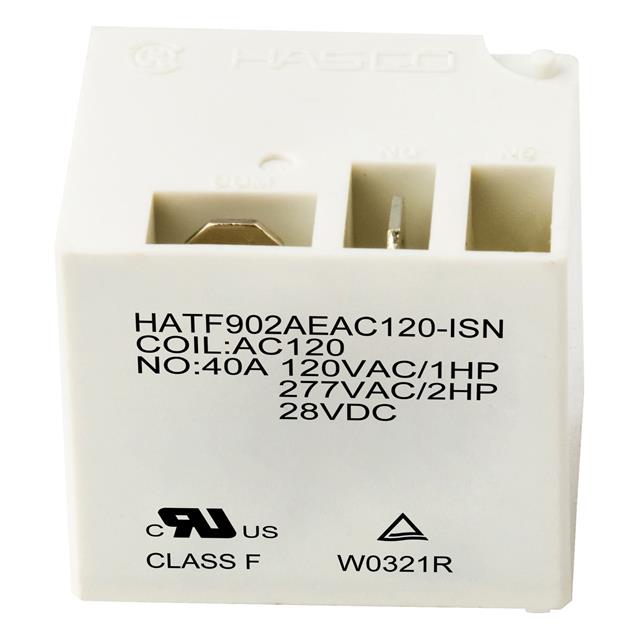

Hasco Relays HATF902AEAC120-ISN
Image shown is a representation only
Manufacturer
Manufacturer No
HATF902AEAC120-ISN
Packaging
Tube
Description
RELAY SPST 40A 120V
Detailed Description
Relay SPST-NO (1 Form A) 120VAC Coil Through Hole
DataSheet
Mfr
Hasco Relays
Series
HAT902
Coil Type
Non Latching
Packaging
Tube
Part Status
Active
Seal Rating
Sealed - Fully
Coil Current
40 mA
Coil Voltage
120VAC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Coil Insulation
Class F
Contact Material
Silver Alloy
Switching Voltage
277VAC
Termination Style
PC Pin
Base Product Number
HATF902
Must Operate Voltage
96 VAC
Must Release Voltage
12 VAC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | Hasco Relays |
| Series | HAT902 |
| Coil Type | Non Latching |
| Packaging | Tube |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 40 mA |
| Coil Voltage | 120VAC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Coil Insulation | Class F |
| Contact Material | Silver Alloy |
| Switching Voltage | 277VAC |
| Termination Style | PC Pin |
| Base Product Number | HATF902 |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 12 VAC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 40 A |
