Step1: Product

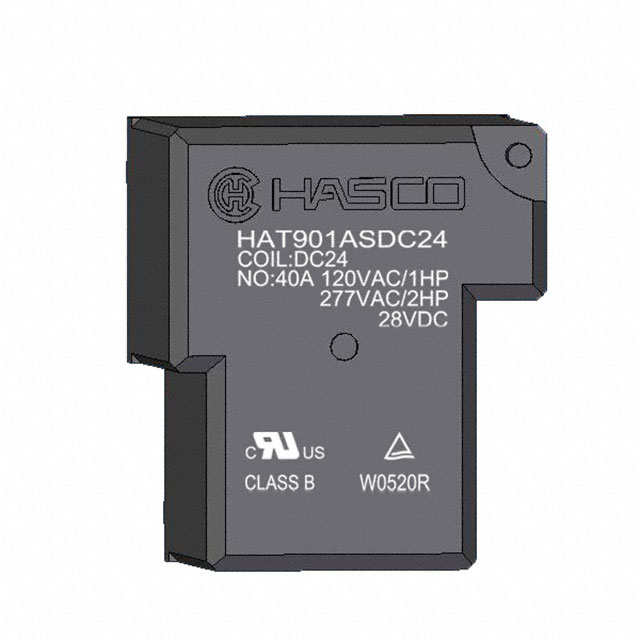

Hasco Relays HAT901ASDC24
Image shown is a representation only
Manufacturer
Manufacturer No
HAT901ASDC24
Packaging
Tube
Description
RELAY SPST 30A 24V
Detailed Description
Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
DataSheet
Mfr
Hasco Relays
Series
HAT
Coil Type
Non Latching
Packaging
Tube
Part Status
Active
Coil Current
36.4 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Coil Insulation
Class B
Contact Material
Silver Alloy
Switching Voltage
277VAC - Max
Termination Style
PC Pin
Base Product Number
HAT901
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Mfr | Hasco Relays |
| Series | HAT |
| Coil Type | Non Latching |
| Packaging | Tube |
| Part Status | Active |
| Coil Current | 36.4 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Coil Insulation | Class B |
| Contact Material | Silver Alloy |
| Switching Voltage | 277VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | HAT901 |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 30 A |
