Step1: Product
Grayhill Inc. 57HS22-02-2-07N

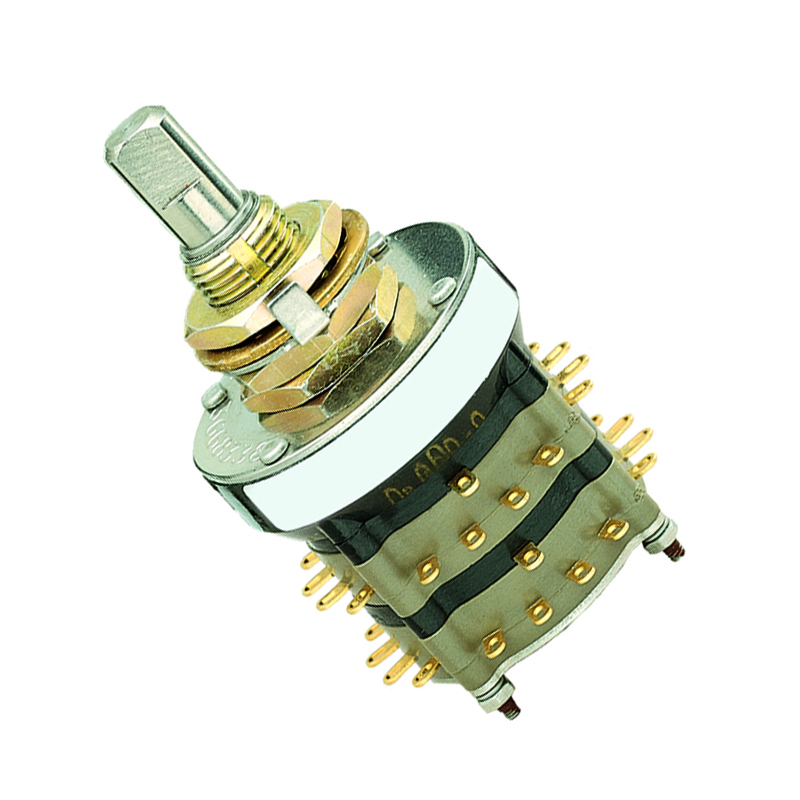

Image shown is a representation only
Manufacturer
Manufacturer No
57HS22-02-2-07N
Packaging
Bulk
Description
SWITCH ROTARY 7POS 250MA 115V
Detailed Description
Rotary Switch 7 Position DP7T 250mA (AC/DC) 115 VAC Panel Mount
Datasheet
Series
57
Features
Shaft and Panel Sealed
Packaging
Bulk
Index Stops
Fixed
Manufacturer
Grayhill Inc.
Actuator Type
Flatted (6.35mm Dia)
Mounting Type
Panel Mount
Angle of Throw
22.5°
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
11.10mm
Number of Decks
2
Circuit per Deck
DP7T
Contact Material
Silver Alloy
Termination Style
Solder Lug
Depth Behind Panel
31.72mm
Base Product Number
57HS22
Number of Positions
7
Voltage Rating - AC
115 V
Voltage Rating - DC
30 V
Current Rating (Amps)
250mA (AC/DC)
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | 57 |
| Features | Shaft and Panel Sealed |
| Packaging | Bulk |
| Index Stops | Fixed |
| Manufacturer | Grayhill Inc. |
| Actuator Type | Flatted (6.35mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 22.5° |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 11.10mm |
| Number of Decks | 2 |
| Circuit per Deck | DP7T |
| Contact Material | Silver Alloy |
| Termination Style | Solder Lug |
| Depth Behind Panel | 31.72mm |
| Base Product Number | 57HS22 |
| Number of Positions | 7 |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 250mA (AC/DC) |
| Number of Poles per Deck | 2 |
