Step1: Product
Grayhill Inc. 50BS36-01-2-03N

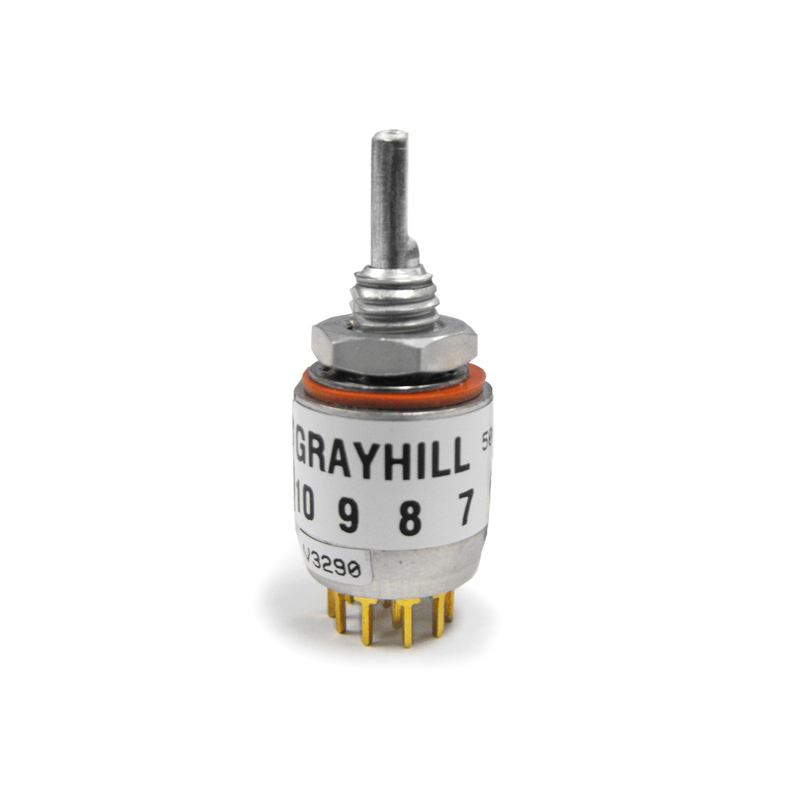

Image shown is a representation only
Manufacturer
Manufacturer No
50BS36-01-2-03N
Packaging
Bulk
Description
SWITCH ROTARY 3POS 150MA 125V
Detailed Description
Rotary Switch 3 Position DP3T 150mA (AC), 200mA (DC) 125 VAC Panel Mount
Datasheet
Series
50
Features
Process Sealed, Shaft and Panel Sealed
Packaging
Bulk
Index Stops
Fixed
Manufacturer
Grayhill Inc.
Actuator Type
Screwdriver Slot
Mounting Type
Panel Mount
Angle of Throw
36°
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
3.18mm
Number of Decks
1
Circuit per Deck
DP3T
Termination Style
Solder Lug
Depth Behind Panel
18.77mm
Base Product Number
50BS36
Number of Positions
3
Voltage Rating - AC
125 V
Voltage Rating - DC
28 V
Current Rating (Amps)
150mA (AC), 200mA (DC)
Panel Cutout Dimensions
Circular - 6.45mm Dia
Number of Poles per Deck
2
| Attribute | Value |
|---|---|
| Series | 50 |
| Features | Process Sealed, Shaft and Panel Sealed |
| Packaging | Bulk |
| Index Stops | Fixed |
| Manufacturer | Grayhill Inc. |
| Actuator Type | Screwdriver Slot |
| Mounting Type | Panel Mount |
| Angle of Throw | 36° |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 3.18mm |
| Number of Decks | 1 |
| Circuit per Deck | DP3T |
| Termination Style | Solder Lug |
| Depth Behind Panel | 18.77mm |
| Base Product Number | 50BS36 |
| Number of Positions | 3 |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 150mA (AC), 200mA (DC) |
| Panel Cutout Dimensions | Circular - 6.45mm Dia |
| Number of Poles per Deck | 2 |
