Step1: Product

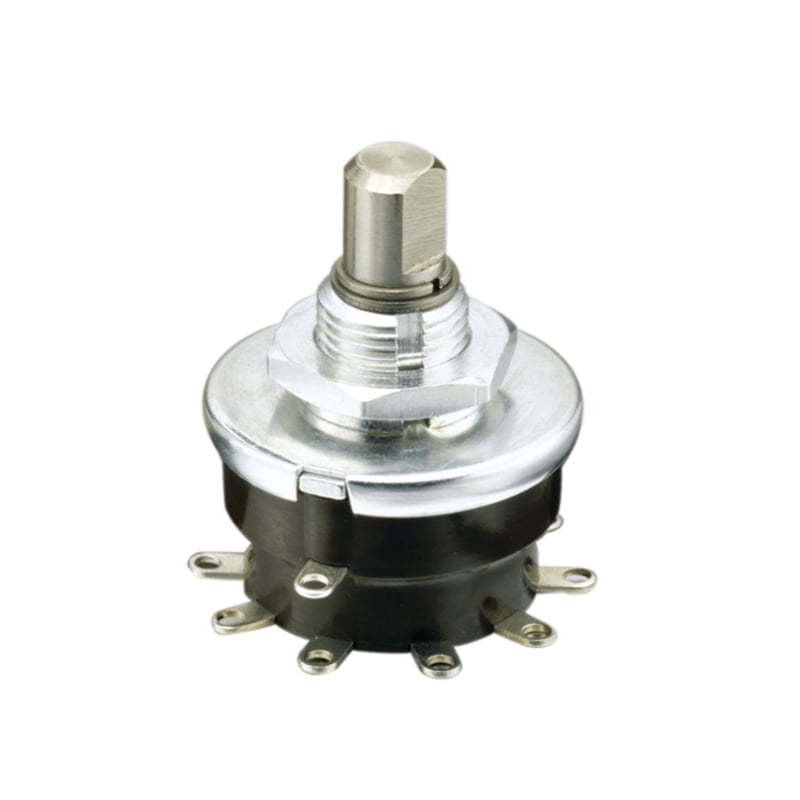

Grayhill Inc. 24004-10N
Image shown is a representation only
Manufacturer
Manufacturer No
24004-10N
Packaging
Bulk
Description
SWITCH ROTARY 10POS 1A 115V
Detailed Description
Rotary Switch 10 Position SP10T 1A (AC/DC) 115 VAC Panel Mount
DataSheet
Series
24
Packaging
Bulk
Index Stops
Continuous
Part Status
Discontinued at DigiKey
Manufacturer
Grayhill Inc.
Actuator Type
Flatted (6.35mm Dia)
Mounting Type
Panel Mount
Angle of Throw
36°
Contact Finish
Silver
Contact Timing
Non-Shorting (BBM)
Actuator Length
7.92mm
Number of Decks
4
Circuit per Deck
SP10T
Contact Material
Phosphor Bronze
Termination Style
Solder Lug
Base Product Number
24004
Number of Positions
10
Voltage Rating - AC
115 V
Voltage Rating - DC
28 V
Current Rating (Amps)
1A (AC/DC)
Number of Poles per Deck
1
| Attribute | Value |
|---|---|
| Series | 24 |
| Packaging | Bulk |
| Index Stops | Continuous |
| Part Status | Discontinued at DigiKey |
| Manufacturer | Grayhill Inc. |
| Actuator Type | Flatted (6.35mm Dia) |
| Mounting Type | Panel Mount |
| Angle of Throw | 36° |
| Contact Finish | Silver |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 7.92mm |
| Number of Decks | 4 |
| Circuit per Deck | SP10T |
| Contact Material | Phosphor Bronze |
| Termination Style | Solder Lug |
| Base Product Number | 24004 |
| Number of Positions | 10 |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
| Current Rating (Amps) | 1A (AC/DC) |
| Number of Poles per Deck | 1 |
