Gowanda Electronics SMT45A-801LF

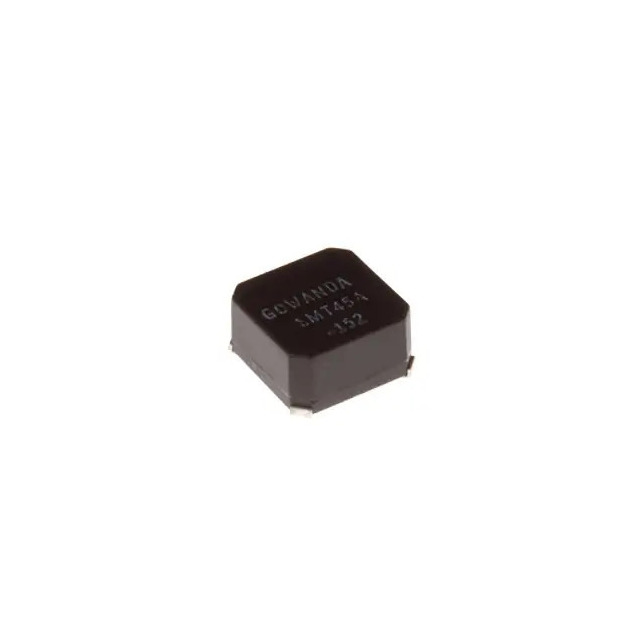

Image shown is a representation only
Manufacturer
Manufacturer No
SMT45A-801LF
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
INDUCT ARRAY 2 COIL 8UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 32 µH Inductance - Connected in Series 8 µH Inductance - Connected in Parallel 13mOhm DC Resistance (DCR) - Parallel 5.49 A Nonstandard
DataSheet
Height
0.250" (6.35mm)
Series
SMT45A
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Tolerance
±25%
Part Status
Active
Manufacturer
Gowanda Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.480" L x 0.480" W (12.20mm x 12.20mm)
Operating Temperature
-55°C ~ 125°C
Current Rating - Series
2.74 A
Current Rating - Parallel
5.49 A
Current Saturation - Series
2.25 A
DC Resistance (DCR) - Series
50.2mOhm
Current Saturation - Parallel
4.5 A
DC Resistance (DCR) - Parallel
13mOhm
Inductance - Connected In Series
32 µH
Inductance - Connected In Parallel
8 µH
| Attribute | Value |
|---|---|
| Height | 0.250" (6.35mm) |
| Series | SMT45A |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Gowanda Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating - Series | 2.74 A |
| Current Rating - Parallel | 5.49 A |
| Current Saturation - Series | 2.25 A |
| DC Resistance (DCR) - Series | 50.2mOhm |
| Current Saturation - Parallel | 4.5 A |
| DC Resistance (DCR) - Parallel | 13mOhm |
| Inductance - Connected In Series | 32 µH |
| Inductance - Connected In Parallel | 8 µH |
