Gowanda Electronics SMT45A-502

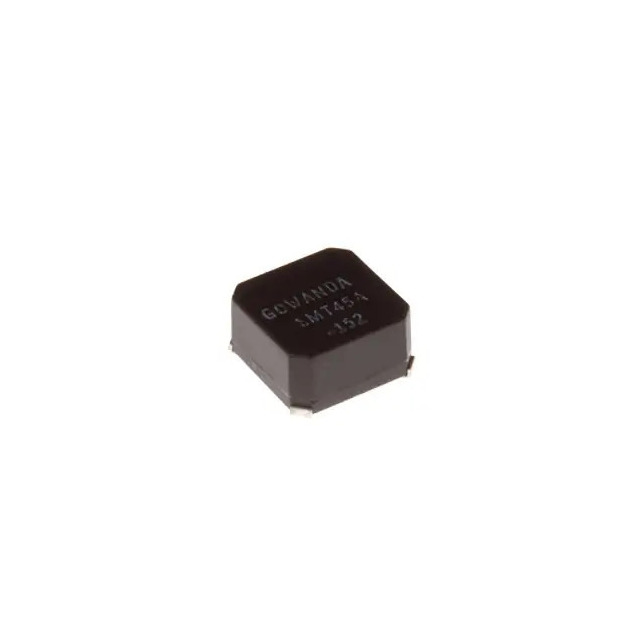

Image shown is a representation only
Manufacturer
Manufacturer No
SMT45A-502
Package
Nonstandard, 4 Lead
Packaging
Tape & Reel (TR)
Description
INDUCT ARRAY 2 COIL 50UH SMD
Detailed Description
Unshielded 2 Coil Inductor Array 200 µH Inductance - Connected in Series 50 µH Inductance - Connected in Parallel 89mOhm DC Resistance (DCR) - Parallel 2.05 A Nonstandard, 4 Lead
DataSheet
Height
0.250" (6.35mm)
Series
SMT45A
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±25%
Part Status
Active
Manufacturer
Gowanda Electronics
Mounting Type
Surface Mount
Package / Case
Nonstandard, 4 Lead
Number of Coils
2
Size / Dimension
0.480" L x 0.480" W (12.20mm x 12.20mm)
Operating Temperature
-55°C ~ 125°C
Current Rating - Series
1.03 A
Current Rating - Parallel
2.05 A
Current Saturation - Series
940 mA
DC Resistance (DCR) - Series
358mOhm
Current Saturation - Parallel
1.88 A
DC Resistance (DCR) - Parallel
89mOhm
Inductance - Connected In Series
200 µH
Inductance - Connected In Parallel
50 µH
| Attribute | Value |
|---|---|
| Height | 0.250" (6.35mm) |
| Series | SMT45A |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | Gowanda Electronics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Number of Coils | 2 |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Operating Temperature | -55°C ~ 125°C |
| Current Rating - Series | 1.03 A |
| Current Rating - Parallel | 2.05 A |
| Current Saturation - Series | 940 mA |
| DC Resistance (DCR) - Series | 358mOhm |
| Current Saturation - Parallel | 1.88 A |
| DC Resistance (DCR) - Parallel | 89mOhm |
| Inductance - Connected In Series | 200 µH |
| Inductance - Connected In Parallel | 50 µH |
