Step1: Product
Gowanda Electronics 050AT2503HLF

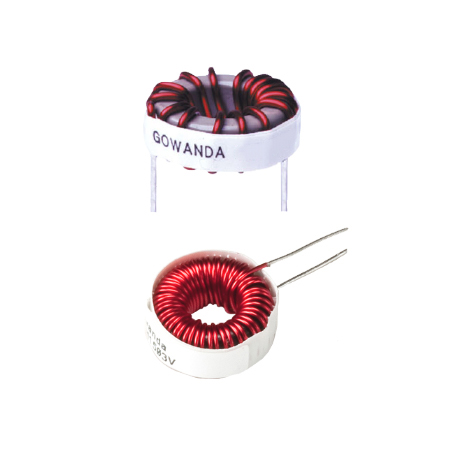

Image shown is a representation only
Manufacturer
Manufacturer No
050AT2503HLF
Package
Radial, Horizontal (Open)
Packaging
Bulk
Description
FIXED IND 250UH 1.84A 160 MOHM
Detailed Description
250 µH Shielded Toroidal Inductor 1.84 A 160mOhm Max Radial, Horizontal (Open)
DataSheet
Mfr
Gowanda Electronics
Type
Toroidal
Series
AT
Packaging
Bulk
Shielding
Shielded
Tolerance
±10%
Inductance
250 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Radial, Horizontal (Open)
Size / Dimension
0.625" Dia (15.88mm)
DC Resistance (DCR)
160mOhm Max
Current Rating (Amps)
1.84 A
Height - Seated (Max)
0.300" (7.62mm)
Operating Temperature
-55°C ~ 130°C
Supplier Device Package
Radial
Frequency - Self Resonant
1.5MHz
Current - Saturation (Isat)
1.4A
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Gowanda Electronics |
| Type | Toroidal |
| Series | AT |
| Packaging | Bulk |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 250 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Size / Dimension | 0.625" Dia (15.88mm) |
| DC Resistance (DCR) | 160mOhm Max |
| Current Rating (Amps) | 1.84 A |
| Height - Seated (Max) | 0.300" (7.62mm) |
| Operating Temperature | -55°C ~ 130°C |
| Supplier Device Package | Radial |
| Frequency - Self Resonant | 1.5MHz |
| Current - Saturation (Isat) | 1.4A |
| Inductance Frequency - Test | 1 kHz |
