Step1: Product
Gowanda Electronics 050AT1503HC

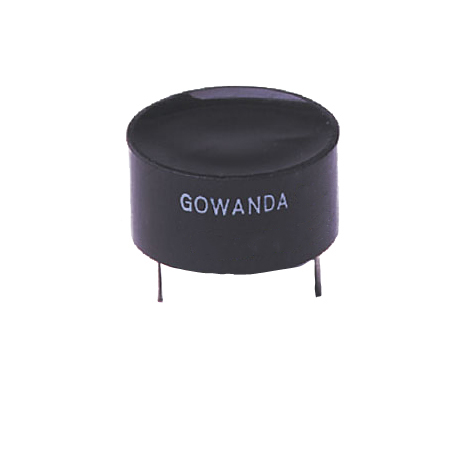

Image shown is a representation only
Manufacturer
Manufacturer No
050AT1503HC
Package
Radial, Horizontal Cylinder (Open)
Packaging
Bulk
Description
FIXED IND 150UH 2.33A 100 MOHM
Detailed Description
150 µH Shielded Toroidal Inductor 2.33 A 100mOhm Max Radial, Horizontal Cylinder (Open)
DataSheet
Mfr
Gowanda Electronics
Type
Toroidal
Series
ATHC
Packaging
Bulk
Shielding
Shielded
Tolerance
±10%
Inductance
150 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Radial, Horizontal Cylinder (Open)
Size / Dimension
0.750" Dia (19.05mm)
DC Resistance (DCR)
100mOhm Max
Current Rating (Amps)
2.33 A
Height - Seated (Max)
0.425" (10.80mm)
Operating Temperature
-55°C ~ 130°C
Supplier Device Package
Radial
Frequency - Self Resonant
1MHz
Current - Saturation (Isat)
1.8A
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Gowanda Electronics |
| Type | Toroidal |
| Series | ATHC |
| Packaging | Bulk |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 150 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Size / Dimension | 0.750" Dia (19.05mm) |
| DC Resistance (DCR) | 100mOhm Max |
| Current Rating (Amps) | 2.33 A |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Operating Temperature | -55°C ~ 130°C |
| Supplier Device Package | Radial |
| Frequency - Self Resonant | 1MHz |
| Current - Saturation (Isat) | 1.8A |
| Inductance Frequency - Test | 1 kHz |
