Step1: Product

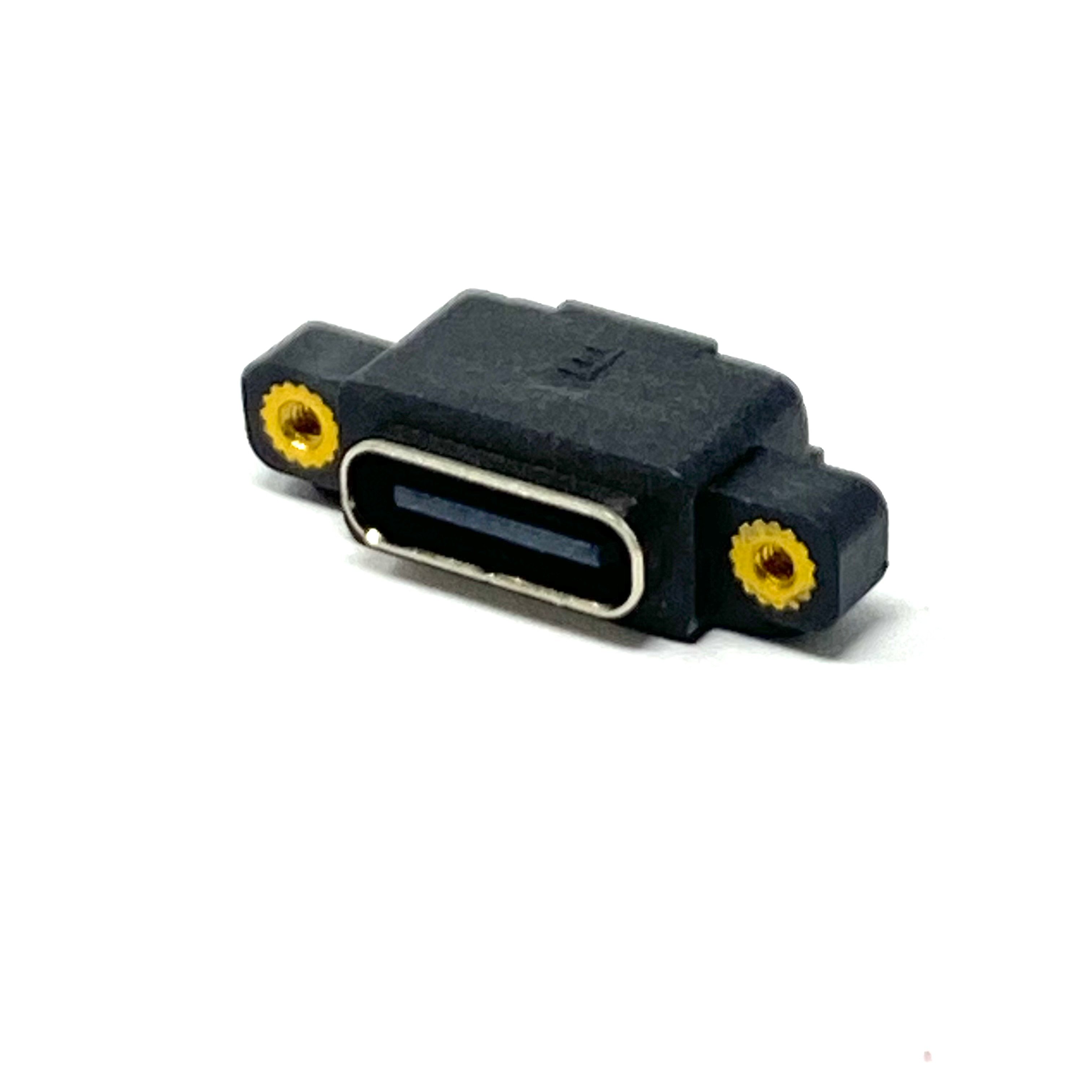

GlobTek, Inc. JACK-USBC-6SMT-2SL
Image shown is a representation only
Manufacturer
Manufacturer No
JACK-USBC-6SMT-2SL
Packaging
Bulk
Description
USB-C 3.2 6P IPX7 SMT JACK
Detailed Description
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 (6+18 Dummy) - Power Only 6 Pin Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
DataSheet
Gender
Receptacle
Packaging
Bulk
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
GlobTek, Inc.
Mating Cycles
10000
Mounting Type
Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Connector Type
USB-C (USB TYPE-C)
Specifications
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of Ports
1
Voltage - Rated
100VAC
Insulation Color
Black
Mounting Feature
Flange, Horizontal
Ingress Protection
IPX7 - Waterproof
Number of Contacts
24 (6+18 Dummy) - Power Only 6 Pin
Current Rating (Amps)
3A
Operating Temperature
-30°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Bulk |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | GlobTek, Inc. |
| Mating Cycles | 10000 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of Ports | 1 |
| Voltage - Rated | 100VAC |
| Insulation Color | Black |
| Mounting Feature | Flange, Horizontal |
| Ingress Protection | IPX7 - Waterproof |
| Number of Contacts | 24 (6+18 Dummy) - Power Only 6 Pin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -30°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
