Step1: Product

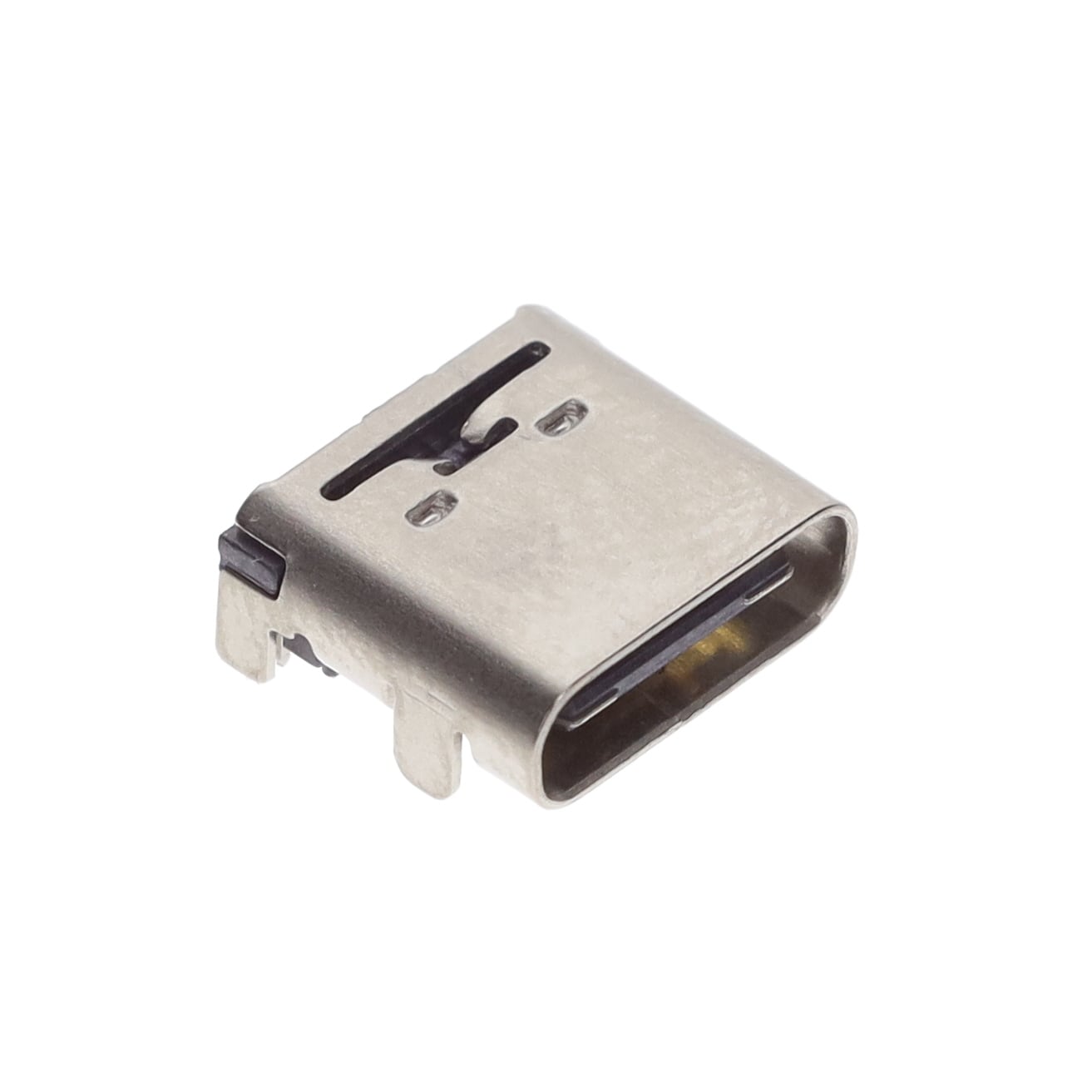

GlobTek, Inc. JACK-USBC-241SMT-4BV64
Image shown is a representation only
Manufacturer
Manufacturer No
JACK-USBC-241SMT-4BV64
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
USB TYPE C JACK IPX7 SMT
Detailed Description
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
GlobTek, Inc.
Mating Cycles
10000
Mounting Type
Surface Mount, Right Angle; Through Hole
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold
Specifications
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of Ports
1
Voltage - Rated
20V
Mounting Feature
Horizontal
Number of Contacts
24
Current Rating (Amps)
0.25A, 1.25A, 5A, 6.25A
Shell/Shielding Material
Steel, Stainless
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | GlobTek, Inc. |
| Mating Cycles | 10000 |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of Ports | 1 |
| Voltage - Rated | 20V |
| Mounting Feature | Horizontal |
| Number of Contacts | 24 |
| Current Rating (Amps) | 0.25A, 1.25A, 5A, 6.25A |
| Shell/Shielding Material | Steel, Stainless |
