Step1: Product
GES High Voltage 1030-RP1-020-01S14-FS

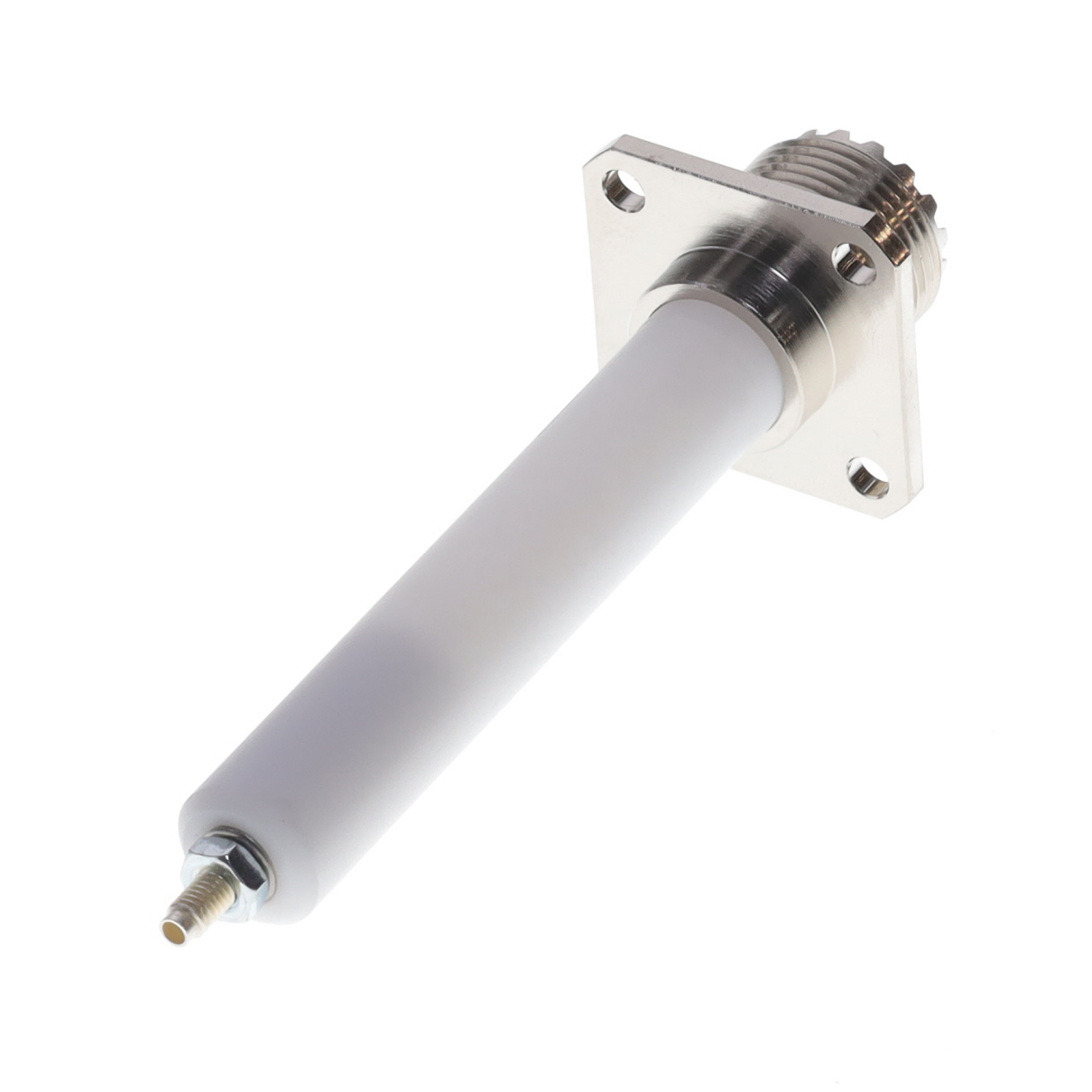

Image shown is a representation only
Manufacturer
Manufacturer No
1030-RP1-020-01S14-FS
Packaging
Bag
Description
S20-RP, RECEPT., 20 KVDC, 1P
Detailed Description
1 Position Circular Connector Receptacle, Female Pins Screw or Solder
DataSheet
Mfr
GES High Voltage
Color
Silver, White
Series
S
Features
High Voltage Connector
Packaging
Bag
Orientation
N (Normal)
Part Status
Active
Termination
Screw or Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Pins
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
20000VDC
Insert Material
Thermoplastic
Contact Material
Brass
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
IP50 - Dust Protected
Number of Positions
1
Current Rating (Amps)
30A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | GES High Voltage |
| Color | Silver, White |
| Series | S |
| Features | High Voltage Connector |
| Packaging | Bag |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Screw or Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 20000VDC |
| Insert Material | Thermoplastic |
| Contact Material | Brass |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | IP50 - Dust Protected |
| Number of Positions | 1 |
| Current Rating (Amps) | 30A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 V-0 |
