Step1: Product

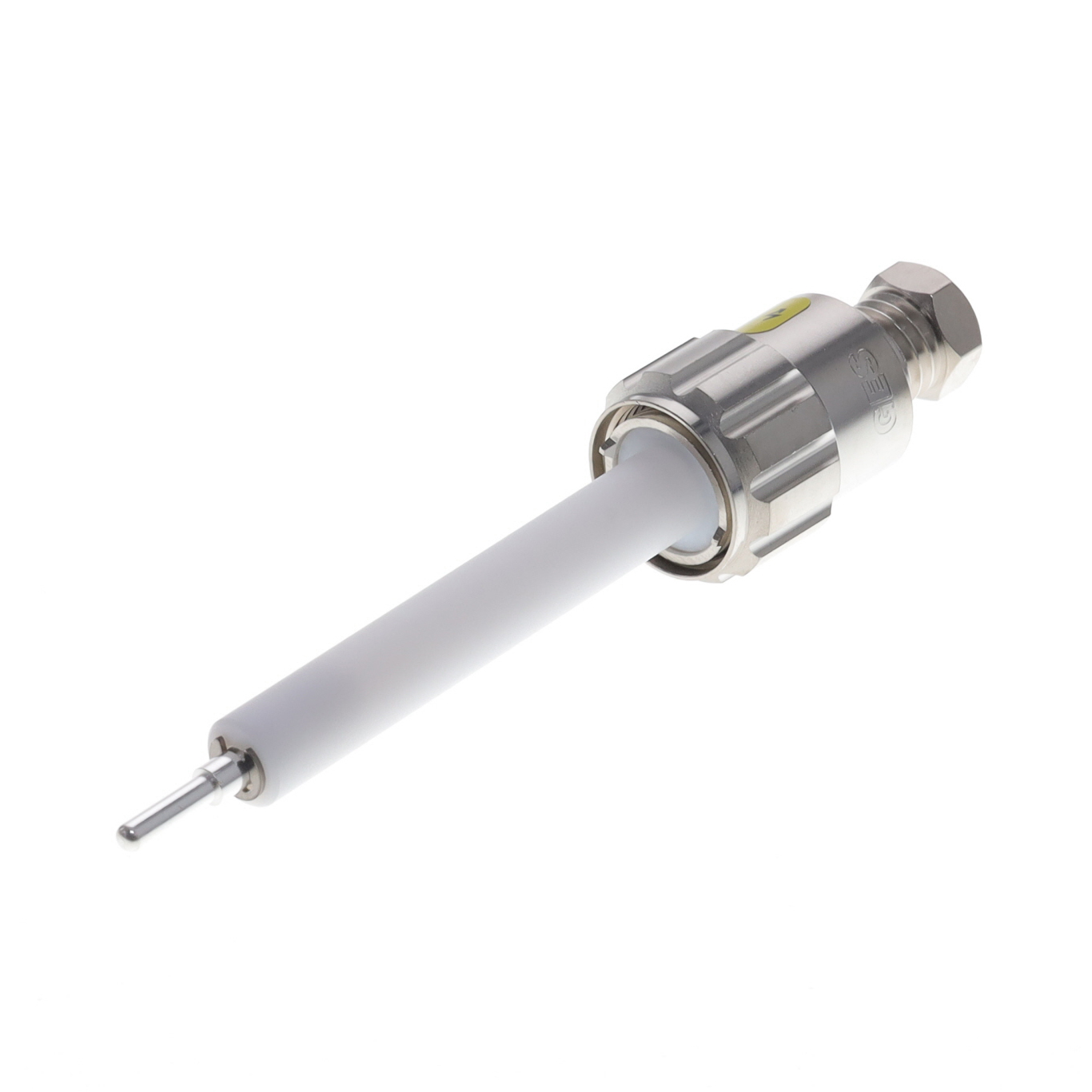

GES High Voltage 1030-PC1-020-01S14-12
Image shown is a representation only
Manufacturer
Manufacturer No
1030-PC1-020-01S14-12
Packaging
Bag
Description
S20-PC, PLUG, 20 KVDC, 1P
Detailed Description
1 (Coax) Position Circular Connector Plug, Male Pins Solder
DataSheet
Mfr
GES High Voltage
Color
Silver, White
Series
S
Features
High Voltage Connector
Packaging
Bag
Shielding
Shielded
Orientation
N (Normal)
Part Status
Active
Termination
Solder
Applications
Industrial, Medical, Testing Equipment & Measurement
Shell Finish
Nickel
Cable Opening
0.256" (6.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
20000VDC
Insert Material
Thermoplastic
Contact Material
Brass
Primary Material
Metal
Ingress Protection
IP50 - Dust Protected
Number of Positions
1 (Coax)
Current Rating (Amps)
30A
Operating Temperature
-30°C ~ 80°C
Contact Finish - Mating
Silver
Backshell Material, Plating
Brass, Nickel
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | GES High Voltage |
| Color | Silver, White |
| Series | S |
| Features | High Voltage Connector |
| Packaging | Bag |
| Shielding | Shielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Solder |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Shell Finish | Nickel |
| Cable Opening | 0.256" (6.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 20000VDC |
| Insert Material | Thermoplastic |
| Contact Material | Brass |
| Primary Material | Metal |
| Ingress Protection | IP50 - Dust Protected |
| Number of Positions | 1 (Coax) |
| Current Rating (Amps) | 30A |
| Operating Temperature | -30°C ~ 80°C |
| Contact Finish - Mating | Silver |
| Backshell Material, Plating | Brass, Nickel |
| Material Flammability Rating | UL94 V-0 |
