Step1: Product
FCI Deutschland GmbH SFW10S-2STME1LF

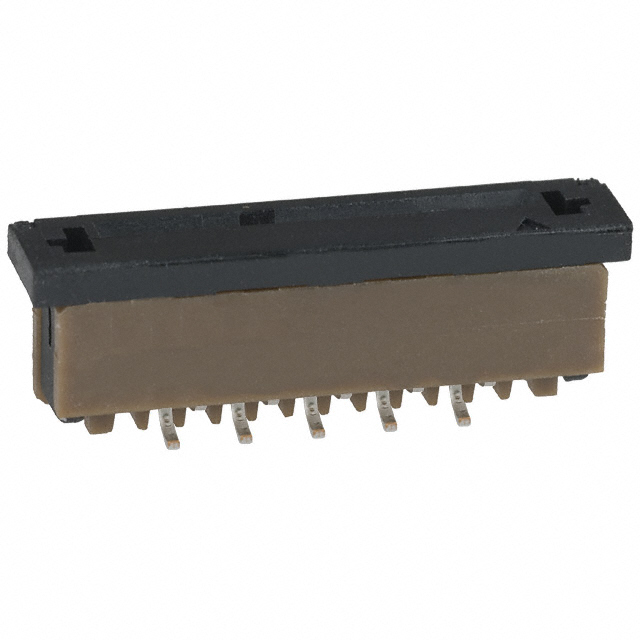

Image shown is a representation only
Manufacturer
Manufacturer No
SFW10S-2STME1LF
Packaging
Tape & Reel (TR)
Description
CONN FFC FPC VERT 10POS 1MM SMD
Detailed Description
10 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Datasheet
Pitch
0.039" (1.00mm)
Series
SFW
Features
Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR)
Termination
Solder
Manufacturer
FCI Deutschland GmbH
Housing Color
Brown
Mating Cycles
20
Mounting Type
Surface Mount
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
100V
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic, Glass Filled
Actuator Material
Thermoplastic, Glass Filled
FFC, FCB Thickness
0.33mm
Height Above Board
0.209" (5.30mm)
Number of Positions
10
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Vertical - 1 Sided
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | SFW |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Termination | Solder |
| Manufacturer | FCI Deutschland GmbH |
| Housing Color | Brown |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 100V |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic, Glass Filled |
| Actuator Material | Thermoplastic, Glass Filled |
| FFC, FCB Thickness | 0.33mm |
| Height Above Board | 0.209" (5.30mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Material Flammability Rating | UL94 V-0 |
