Step1: Product

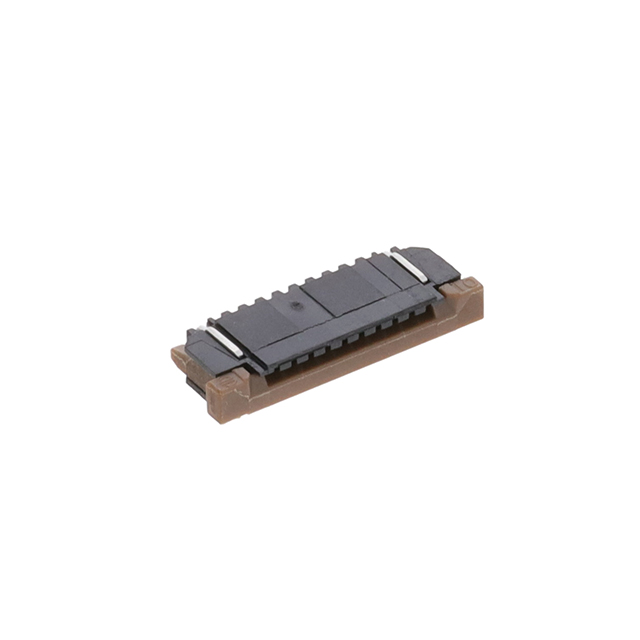

Amphenol ICC (FCI) SFW10R-4STE1LF
Image shown is a representation only
Manufacturer
Manufacturer No
SFW10R-4STE1LF
Quantity
77
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC FPC TOP 10POS 1MM R/A
Detailed Description
10 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Datasheet
Pitch
0.039" (1.00mm)
Series
SFW-R
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Amphenol ICC (FCI)
Housing Color
Black
Mating Cycles
20
Mounting Type
Surface Mount, Right Angle
Actuator Color
Brown
Cable End Type
Notched, Tapered
Contact Finish
Tin
Flat Flex Type
FFC, FPC
Voltage Rating
100V
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material
Polyphenylene Sulfide (PPS), Glass Filled
FFC, FCB Thickness
0.30mm, 0.33mm
Height Above Board
0.106" (2.70mm)
Base Product Number
SFW10R
Number of Positions
10
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Top
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Pitch | 0.039" (1.00mm) |
| Series | SFW-R |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Amphenol ICC (FCI) |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Brown |
| Cable End Type | Notched, Tapered |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 100V |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.106" (2.70mm) |
| Base Product Number | SFW10R |
| Number of Positions | 10 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Top |
| Material Flammability Rating | UL94 V-0 |
