Fairchild Semiconductor FAN5340UCX

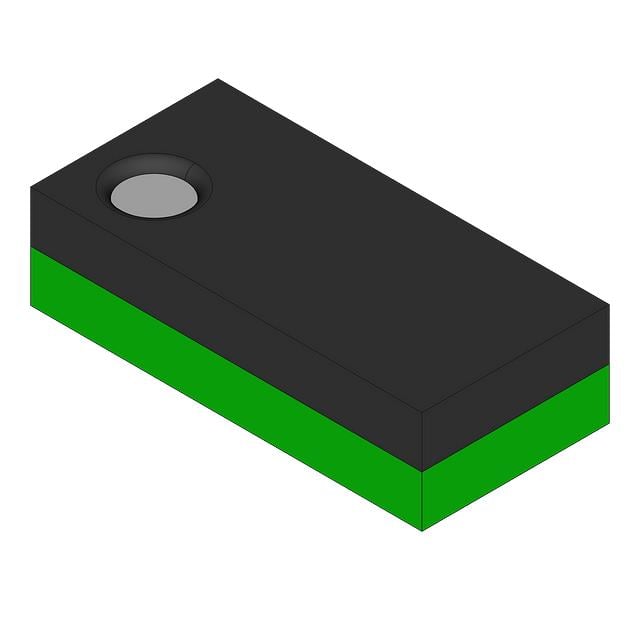

Image shown is a representation only
Manufacturer
Manufacturer No
FAN5340UCX
Package
8-UFBGA, WLCSP
Packaging
Bulk
Description
IC LED DRV RGLTR PWM 40MA 8WLCSP
Detailed Description
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 40mA 8-WLCSP (1.57x1.57)
DataSheet
Type
DC DC Regulator
Dimming
PWM
Topology
Step-Up (Boost)
Frequency
1.2MHz
Packaging
Bulk
Part Status
Active
Applications
Backlight
Manufacturer
Fairchild Semiconductor
Mounting Type
Surface Mount
Package / Case
8-UFBGA, WLCSP
Voltage - Output
6.2V ~ 16V
Number of Outputs
1
Internal Switch(s)
Yes
Base Product Number
FAN5340
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply (Max)
4.8V
Voltage - Supply (Min)
2.7V
Supplier Device Package
8-WLCSP (1.57x1.57)
Current - Output / Channel
40mA
| Attribute | Value |
|---|---|
| Type | DC DC Regulator |
| Dimming | PWM |
| Topology | Step-Up (Boost) |
| Frequency | 1.2MHz |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Backlight |
| Manufacturer | Fairchild Semiconductor |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFBGA, WLCSP |
| Voltage - Output | 6.2V ~ 16V |
| Number of Outputs | 1 |
| Internal Switch(s) | Yes |
| Base Product Number | FAN5340 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply (Max) | 4.8V |
| Voltage - Supply (Min) | 2.7V |
| Supplier Device Package | 8-WLCSP (1.57x1.57) |
| Current - Output / Channel | 40mA |
