Step1: Product
Excel Cell Electronic Co., Ltd. ESS0523310

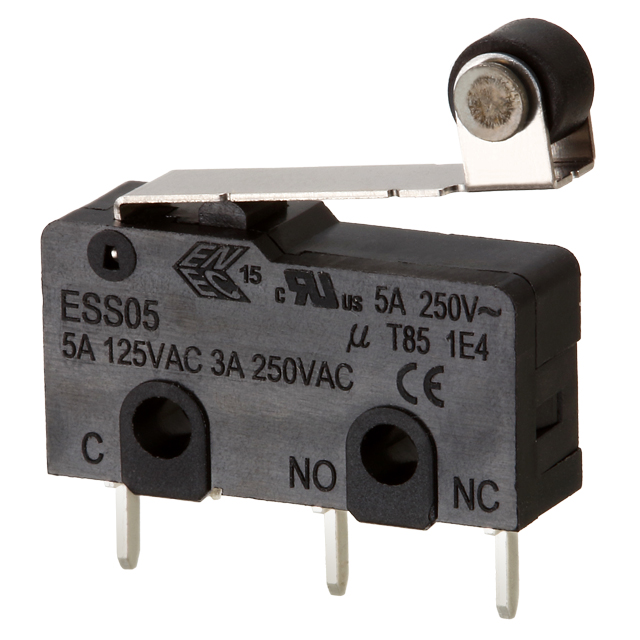

Image shown is a representation only
Manufacturer
Manufacturer No
ESS0523310
Packaging
Tray
Description
MICRO SW, 5A, ROLLER LEVER, 150G
Detailed Description
Switch Chassis Mount
DataSheet
Series
ESS
Packaging
Tray
Overtravel
0.047" (1.2mm)
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Lever, Roller
Mounting Type
Chassis Mount
Release Force
6gf
Electrical Life
200,000 Cycles
Mechanical Life
30,000,000 Cycles
Operating Force
150gf
Switch Function
On-On
Termination Style
PC Pin
Operating Position
0.610" (15.5mm)
Differential Travel
0.031" (0.8mm)
Voltage Rating - AC
125 V
Current Rating (Amps)
5A (AC)
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | ESS |
| Packaging | Tray |
| Overtravel | 0.047" (1.2mm) |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Release Force | 6gf |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 30,000,000 Cycles |
| Operating Force | 150gf |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Operating Position | 0.610" (15.5mm) |
| Differential Travel | 0.031" (0.8mm) |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 5A (AC) |
| Operating Temperature | -25°C ~ 85°C |
