Excel Cell Electronic Co., Ltd. EJF2231000

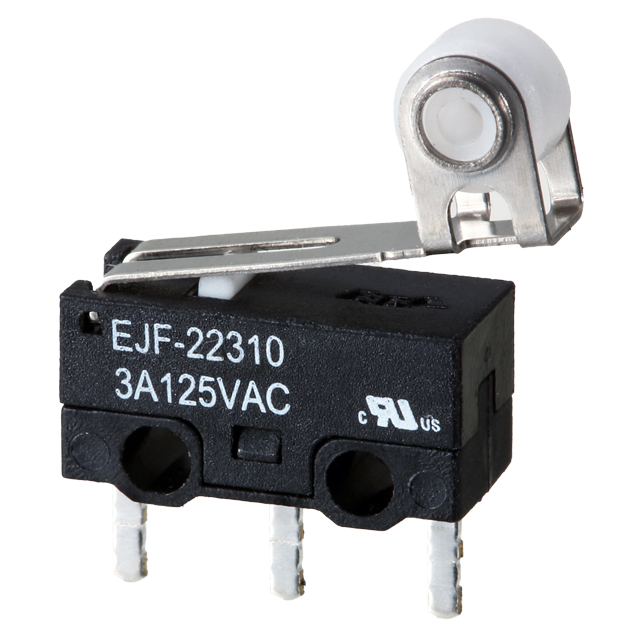

Image shown is a representation only
Manufacturer
Manufacturer No
EJF2231000
Packaging
Tray
Description
MICRO SW, 3A, ROLLER LEVER
Detailed Description
Switch Through Hole
DataSheet
Series
EJF
Packaging
Tray
Pretravel
0.020" (0.5mm)
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Lever, Roller
Mounting Type
Through Hole
Release Force
5gf
Electrical Life
30,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
75gf
Switch Function
On-On
Termination Style
PC Pin
Operating Position
0.217" (5.5mm)
Differential Travel
0.005" (0.13mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Current Rating (Amps)
3A (AC), 1A (DC)
Operating Temperature
-25°C ~ 65°C
| Attribute | Value |
|---|---|
| Series | EJF |
| Packaging | Tray |
| Pretravel | 0.020" (0.5mm) |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Lever, Roller |
| Mounting Type | Through Hole |
| Release Force | 5gf |
| Electrical Life | 30,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 75gf |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Operating Position | 0.217" (5.5mm) |
| Differential Travel | 0.005" (0.13mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 3A (AC), 1A (DC) |
| Operating Temperature | -25°C ~ 65°C |
