Step1: Product

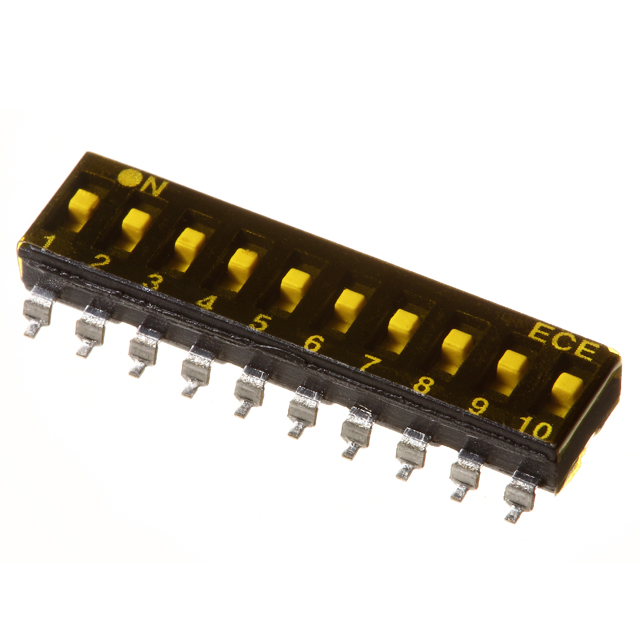

Excel Cell Electronic Co., Ltd. ESD110LDZ
Image shown is a representation only
Manufacturer
Manufacturer No
ESD110LDZ
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
DIP SWITCH, 10P, SMT, T&R
Detailed Description
Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.998" (25.35mm)
Series
ESD
Circuit
SPST
Washable
Yes
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Slide (Standard)
Body Material
Thermoplastic
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Mechanical Life
2,000 Cycles
Termination Style
Gull Wing
Height Above Board
0.146" (3.70mm)
Number of Positions
10
Current Rating (Amps)
25mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.998" (25.35mm) |
| Series | ESD |
| Circuit | SPST |
| Washable | Yes |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Mechanical Life | 2,000 Cycles |
| Termination Style | Gull Wing |
| Height Above Board | 0.146" (3.70mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -25°C ~ 70°C |
