Step1: Product

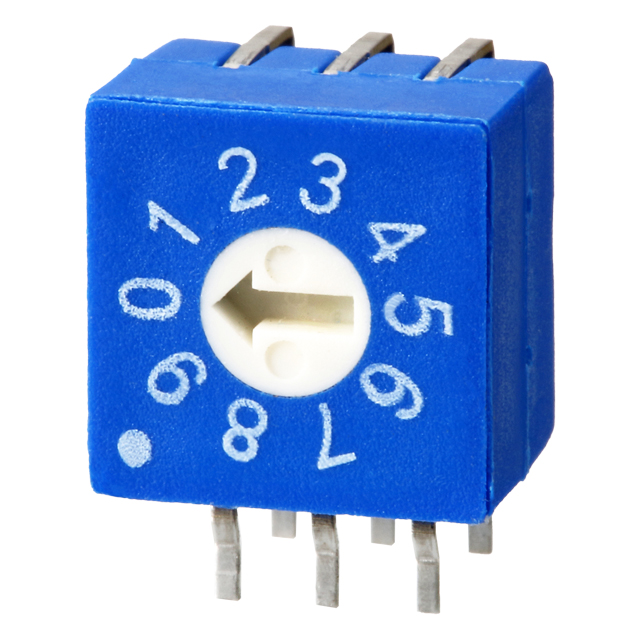

Excel Cell Electronic Co., Ltd. ERD110RFZ
Image shown is a representation only
Manufacturer
Manufacturer No
ERD110RFZ
Packaging
Tube
Description
SW DIP ROTARY BCD COMP 25MA 24V
Detailed Description
Dip Switch BCD Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 25mA 24VDC
DataSheet
Pitch
0.100" (2.54mm), Full
Length
0.394" (10.01mm)
Series
ERD1
Circuit
BCD Complement
Washable
No
Packaging
Tube
Part Status
Active
Manufacturer
Excel Cell Electronic Co., Ltd.
Actuator Type
Rotary for Tool
Body Material
Thermoplastic
Mounting Type
Through Hole, Right Angle
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
24VDC
Mechanical Life
10,000 Steps
Termination Style
PC Pin
Height Above Board
0.394" (10.00mm)
Number of Positions
10
Current Rating (Amps)
25mA
Operating Temperature
-25°C ~ 70°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.394" (10.01mm) |
| Series | ERD1 |
| Circuit | BCD Complement |
| Washable | No |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Excel Cell Electronic Co., Ltd. |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 24VDC |
| Mechanical Life | 10,000 Steps |
| Termination Style | PC Pin |
| Height Above Board | 0.394" (10.00mm) |
| Number of Positions | 10 |
| Current Rating (Amps) | 25mA |
| Operating Temperature | -25°C ~ 70°C |
