Step1: Product
euro-block CRF02-3.81

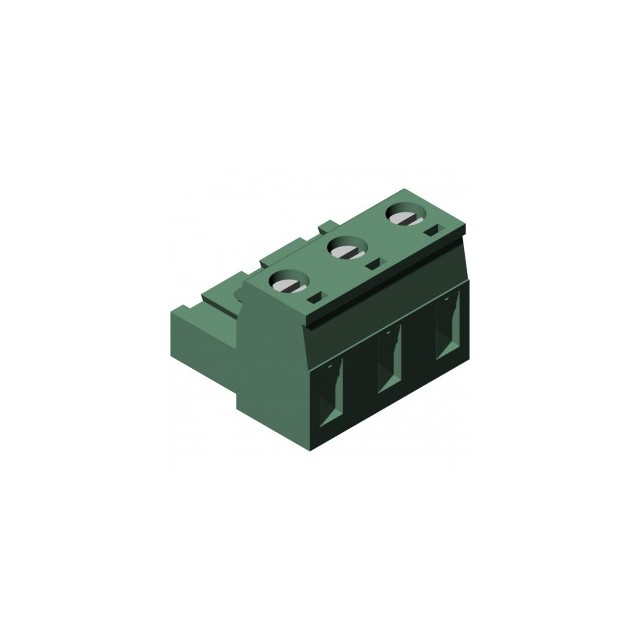

Image shown is a representation only
Manufacturer
Manufacturer No
CRF02-3.81
Packaging
Bulk
Description
TERM BLOCK PLUG 2POS 3.81MM
Detailed Description
2 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90°, Right Angle 180° Through Hole
DataSheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.150" (3.81mm)
Series
CRF
Packaging
Bulk
Screw Size
M2
Part Status
Active
Current - UL
8 A
Manufacturer
euro-block
Voltage - UL
300 V
Current - IEC
7A
Mounting Type
Through Hole
Voltage - IEC
250 V
Torque - Screw
0.2 Nm (1.7 Lb-In)
Plug Wire Entry
180°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.441" (11.20mm)
Termination Style
Screw - Rising Cage Clamp
Wire Strip Length
7mm
Header Orientation
90°, Right Angle
Number of Positions
2
Positions Per Level
2
Contact Mating Finish
Nickel
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
16-28 AWG
Wire Gauge or Range - mm²
1-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.150" (3.81mm) |
| Series | CRF |
| Packaging | Bulk |
| Screw Size | M2 |
| Part Status | Active |
| Current - UL | 8 A |
| Manufacturer | euro-block |
| Voltage - UL | 300 V |
| Current - IEC | 7A |
| Mounting Type | Through Hole |
| Voltage - IEC | 250 V |
| Torque - Screw | 0.2 Nm (1.7 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.441" (11.20mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Strip Length | 7mm |
| Header Orientation | 90°, Right Angle |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | Nickel |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 1-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
