Step1: Product

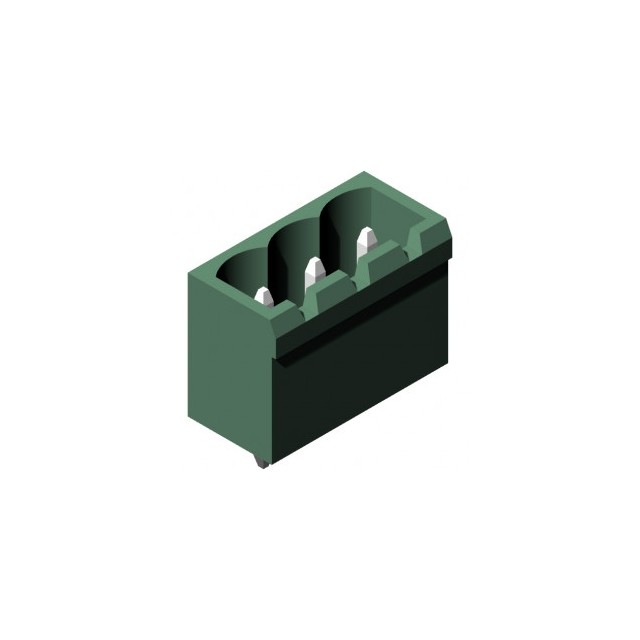

euro-block CCM03-5.08-CV

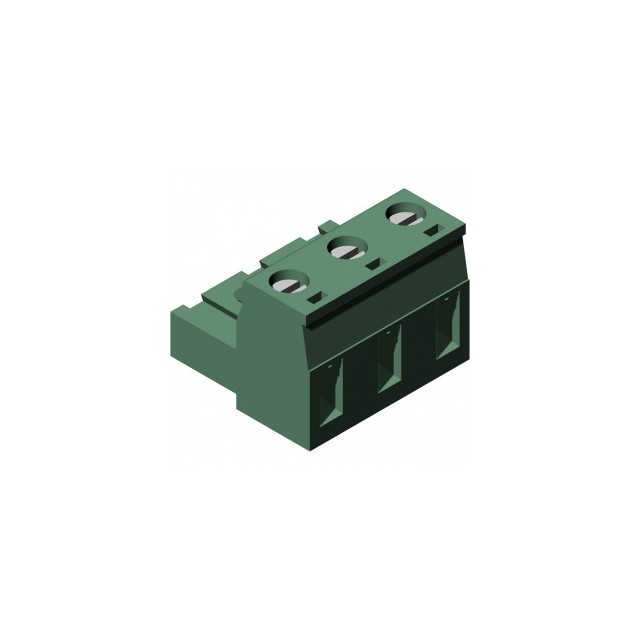

Image shown is a representation only
Manufacturer
Manufacturer No
CCM03-5.08-CV
Packaging
Bulk
Description
TERM BLOCK HDR 3POS 5.08MM
Detailed Description
3 Position Terminal Block Header, Male Pins, Shrouded (3 Side) 0.200" (5.08mm) Vertical 90° Through Hole
DataSheet
Type
Header, Male Pins, Shrouded (3 Side)
Color
Green
Pitch
0.200" (5.08mm)
Series
CCM
Packaging
Bulk
Part Status
Active
Current - UL
15 A
Manufacturer
euro-block
Voltage - UL
300 V
Current - IEC
20A
Mounting Type
Through Hole
Voltage - IEC
320 V
Plug Wire Entry
90°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.472" (12.00mm)
Termination Style
Solder
Header Orientation
Vertical
Contact Tail Length
0.154" (3.90mm)
Number of Positions
3
Positions Per Level
3
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 105°C
Wire Gauge or Range - AWG
12-28 AWG
Wire Gauge or Range - mm²
2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (3 Side) |
| Color | Green |
| Pitch | 0.200" (5.08mm) |
| Series | CCM |
| Packaging | Bulk |
| Part Status | Active |
| Current - UL | 15 A |
| Manufacturer | euro-block |
| Voltage - UL | 300 V |
| Current - IEC | 20A |
| Mounting Type | Through Hole |
| Voltage - IEC | 320 V |
| Plug Wire Entry | 90° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.472" (12.00mm) |
| Termination Style | Solder |
| Header Orientation | Vertical |
| Contact Tail Length | 0.154" (3.90mm) |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 2.5mm² |
| Material Flammability Rating | UL94 V-0 |
