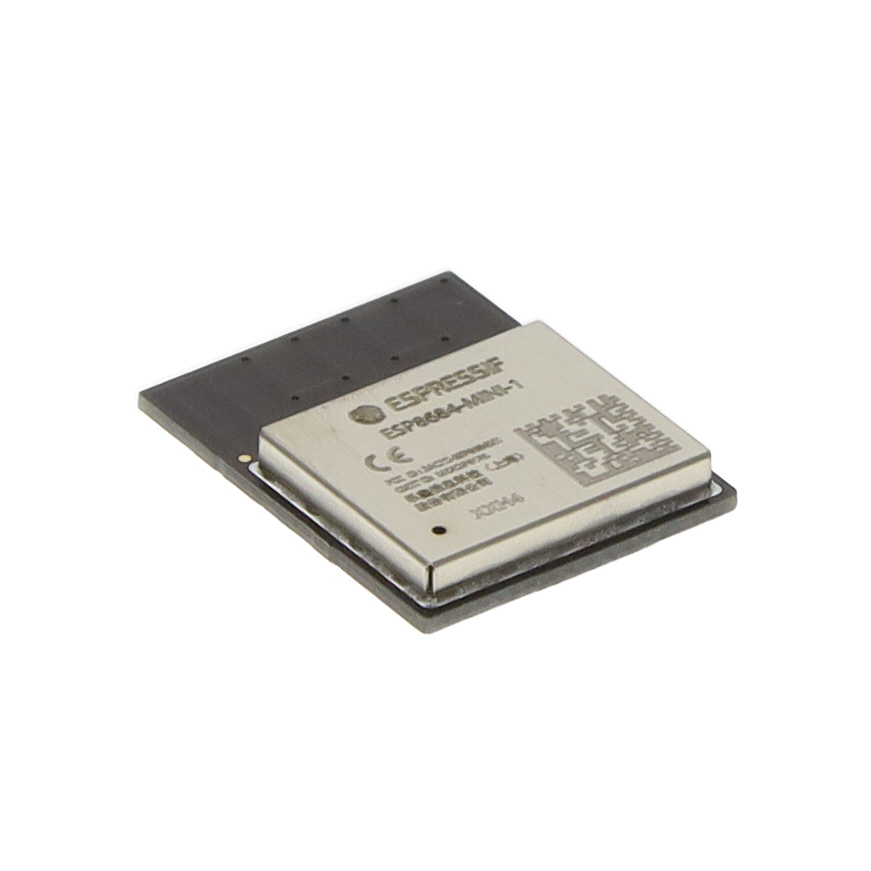

Espressif Systems ESP8684-MINI-1-H4
Image shown is a representation only
Manufacturer
Manufacturer No
ESP8684-MINI-1-H4
Package
61-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
RF TXRX MOD BT WIFI PCB TH SMD
Detailed Description
Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
DataSheet
Mfr
Espressif Systems
Series
ESP8684
Protocol
802.11b/g/n, Bluetooth v5.0
Data Rate
72.2Mbps
Frequency
2.4GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Memory Size
4MB Flash
Part Status
Active
Sensitivity
-106dBm
Antenna Type
PCB Trace
Mounting Type
Surface Mount
Package / Case
61-SMD Module
Power - Output
21dBm
Voltage - Supply
3V ~ 3.6V
Serial Interfaces
GPIO, I2C, JTAG, PWM, SPI, UART
RF Family/Standard
Bluetooth, WiFi
Utilized IC / Part
ESP8684
Base Product Number
ESP8684
Current - Receiving
65mA
Operating Temperature
-40°C ~ 105°C (TA)
Current - Transmitting
300mA ~ 370mA
| Attribute | Value |
|---|---|
| Mfr | Espressif Systems |
| Series | ESP8684 |
| Protocol | 802.11b/g/n, Bluetooth v5.0 |
| Data Rate | 72.2Mbps |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Memory Size | 4MB Flash |
| Part Status | Active |
| Sensitivity | -106dBm |
| Antenna Type | PCB Trace |
| Mounting Type | Surface Mount |
| Package / Case | 61-SMD Module |
| Power - Output | 21dBm |
| Voltage - Supply | 3V ~ 3.6V |
| Serial Interfaces | GPIO, I2C, JTAG, PWM, SPI, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Utilized IC / Part | ESP8684 |
| Base Product Number | ESP8684 |
| Current - Receiving | 65mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Current - Transmitting | 300mA ~ 370mA |
