Step1: Product
Espressif Systems ESP32-D0WD-V3

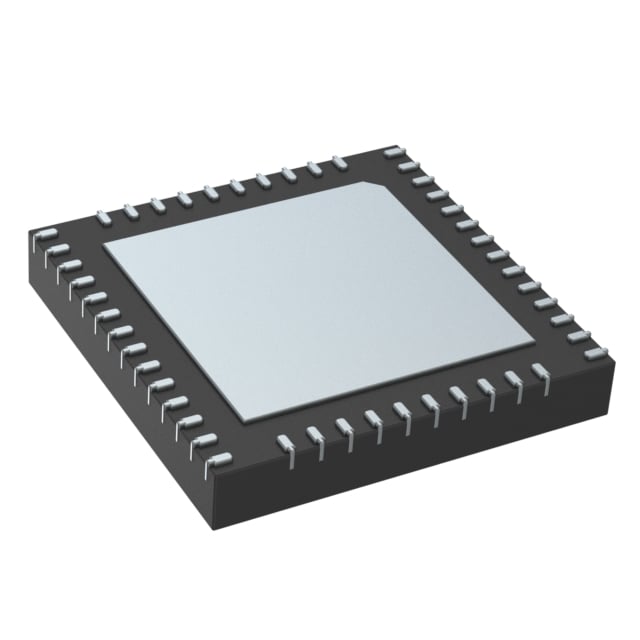

Image shown is a representation only
Manufacturer
Manufacturer No
ESP32-D0WD-V3
Package
48-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC RF TXRX+MCU BLE 48QFN
Detailed Description
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth 4.2 2.412GHz ~ 2.484GHz 48-VFQFN Exposed Pad
DataSheet
Mfr
Espressif Systems
GPIO
34
Type
TxRx + MCU
Series
ESP32
Protocol
802.11b/g/n, Bluetooth 4.2
Frequency
2.412GHz ~ 2.484GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Modulation
8DPSK, DSSS, DQPSK, OFDM
Memory Size
448kB ROM, 520kB SRAM
Part Status
Active
Sensitivity
-97dBm
Mounting Type
Surface Mount
Package / Case
48-VFQFN Exposed Pad
Power - Output
20.5dBm
Data Rate (Max)
150Mbps
Voltage - Supply
2.3V ~ 3.6V
Serial Interfaces
ADC, I2C, I2S, SDIO, SPI, PWM, UART
RF Family/Standard
Bluetooth, WiFi
Base Product Number
ESP32-D0
Current - Receiving
95mA ~ 100mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 125°C
Current - Transmitting
130mA ~ 240mA
Supplier Device Package
48-QFN (5x5)
| Attribute | Value |
|---|---|
| Mfr | Espressif Systems |
| GPIO | 34 |
| Type | TxRx + MCU |
| Series | ESP32 |
| Protocol | 802.11b/g/n, Bluetooth 4.2 |
| Frequency | 2.412GHz ~ 2.484GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Modulation | 8DPSK, DSSS, DQPSK, OFDM |
| Memory Size | 448kB ROM, 520kB SRAM |
| Part Status | Active |
| Sensitivity | -97dBm |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 20.5dBm |
| Data Rate (Max) | 150Mbps |
| Voltage - Supply | 2.3V ~ 3.6V |
| Serial Interfaces | ADC, I2C, I2S, SDIO, SPI, PWM, UART |
| RF Family/Standard | Bluetooth, WiFi |
| Base Product Number | ESP32-D0 |
| Current - Receiving | 95mA ~ 100mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 125°C |
| Current - Transmitting | 130mA ~ 240mA |
| Supplier Device Package | 48-QFN (5x5) |
